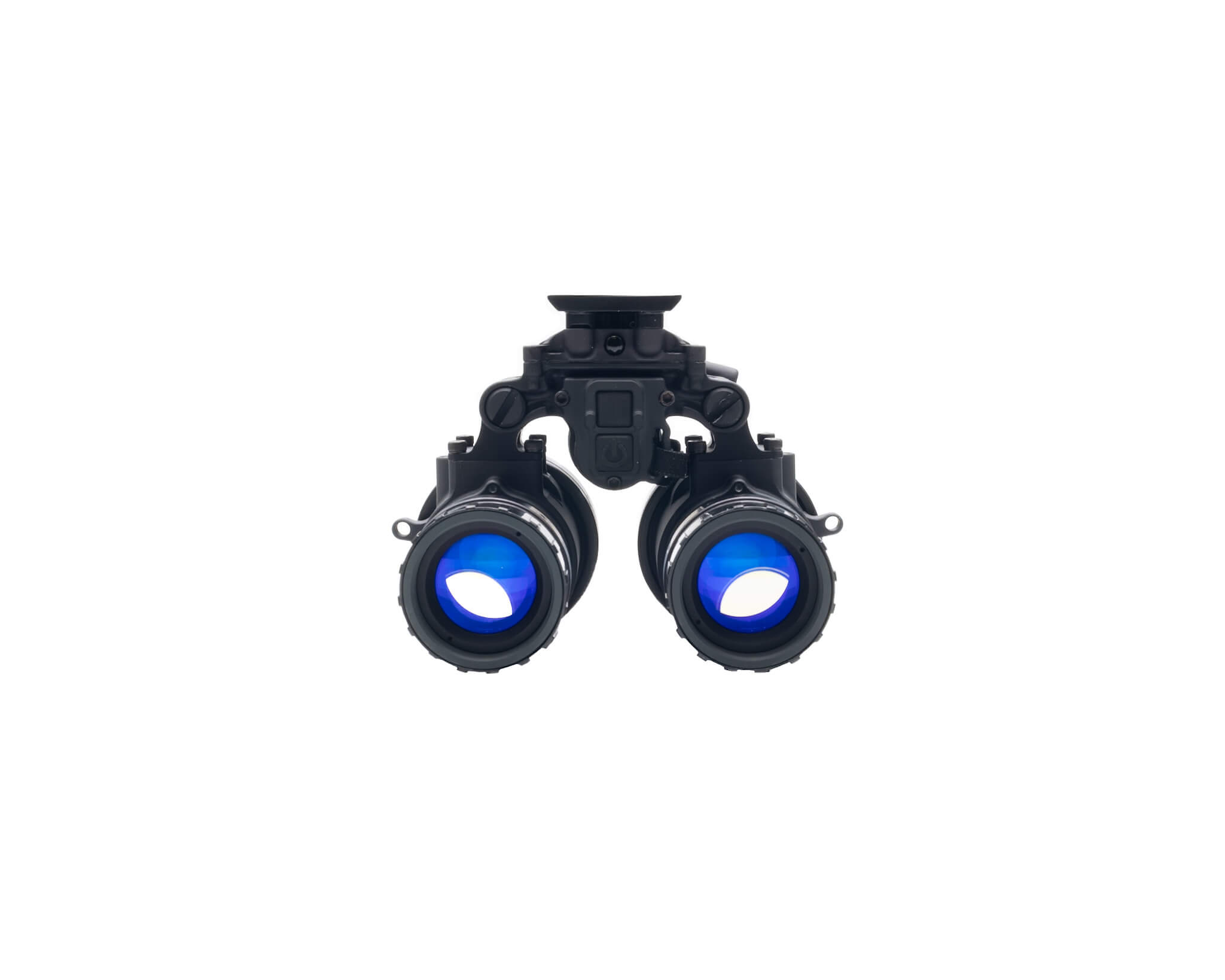

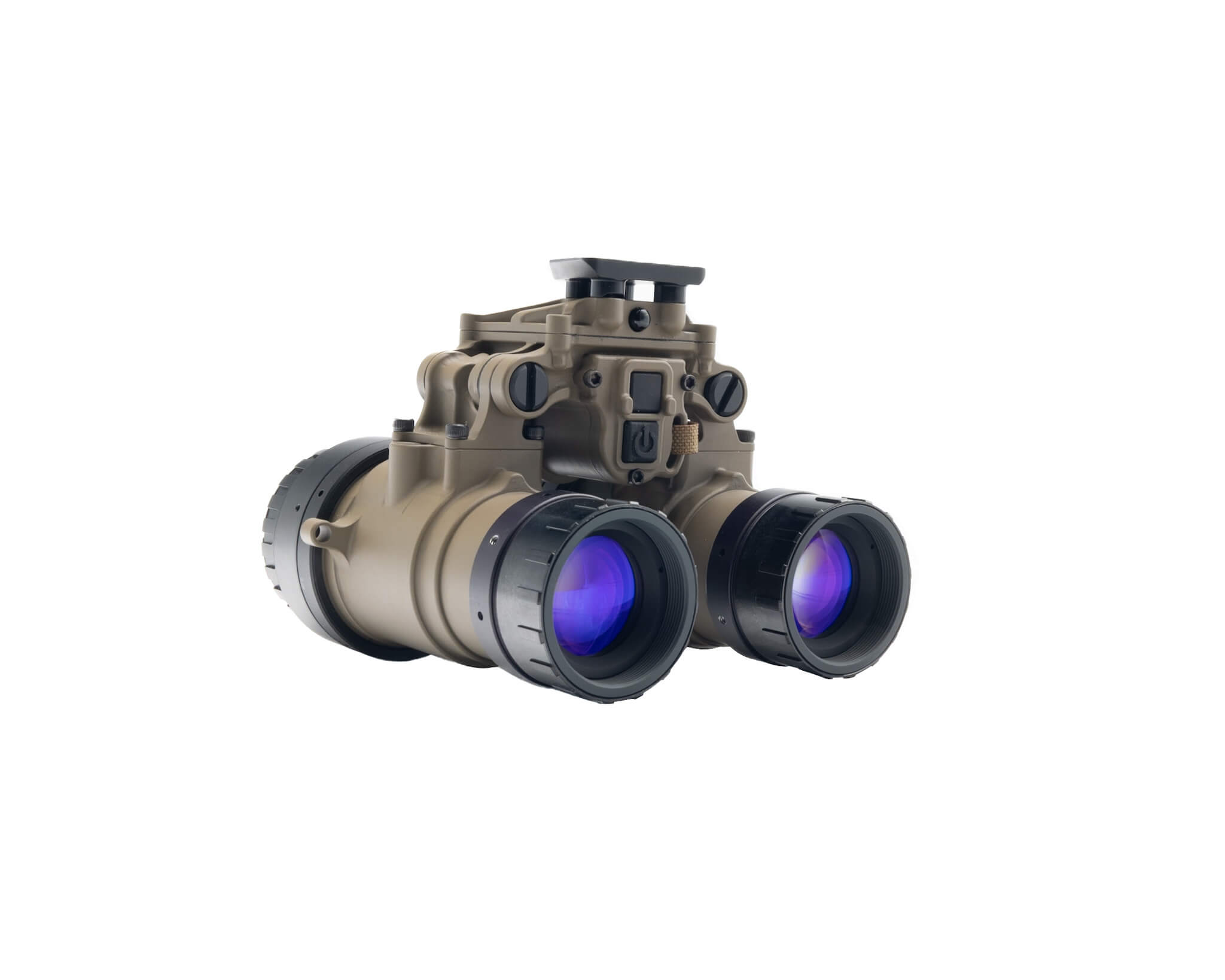

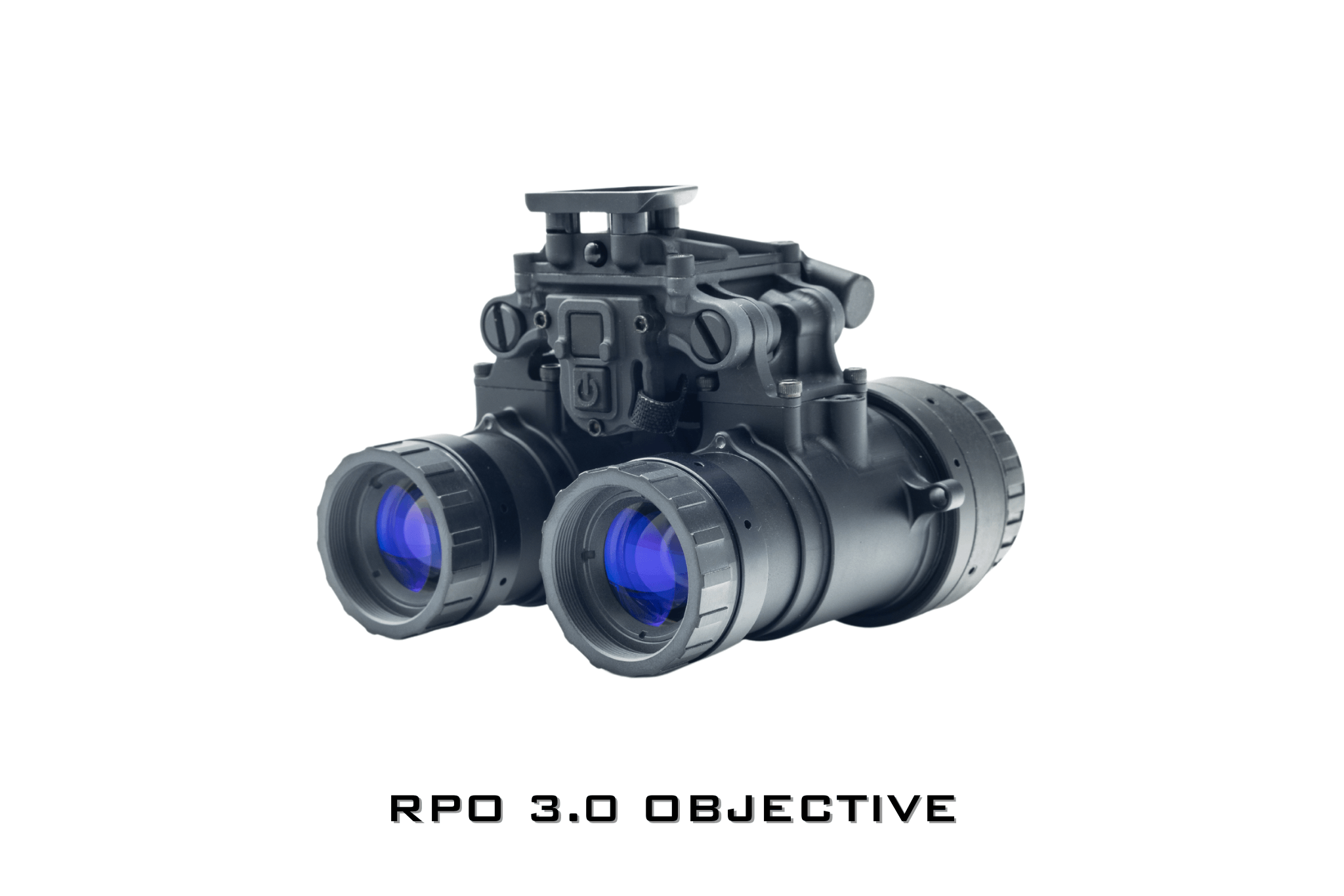

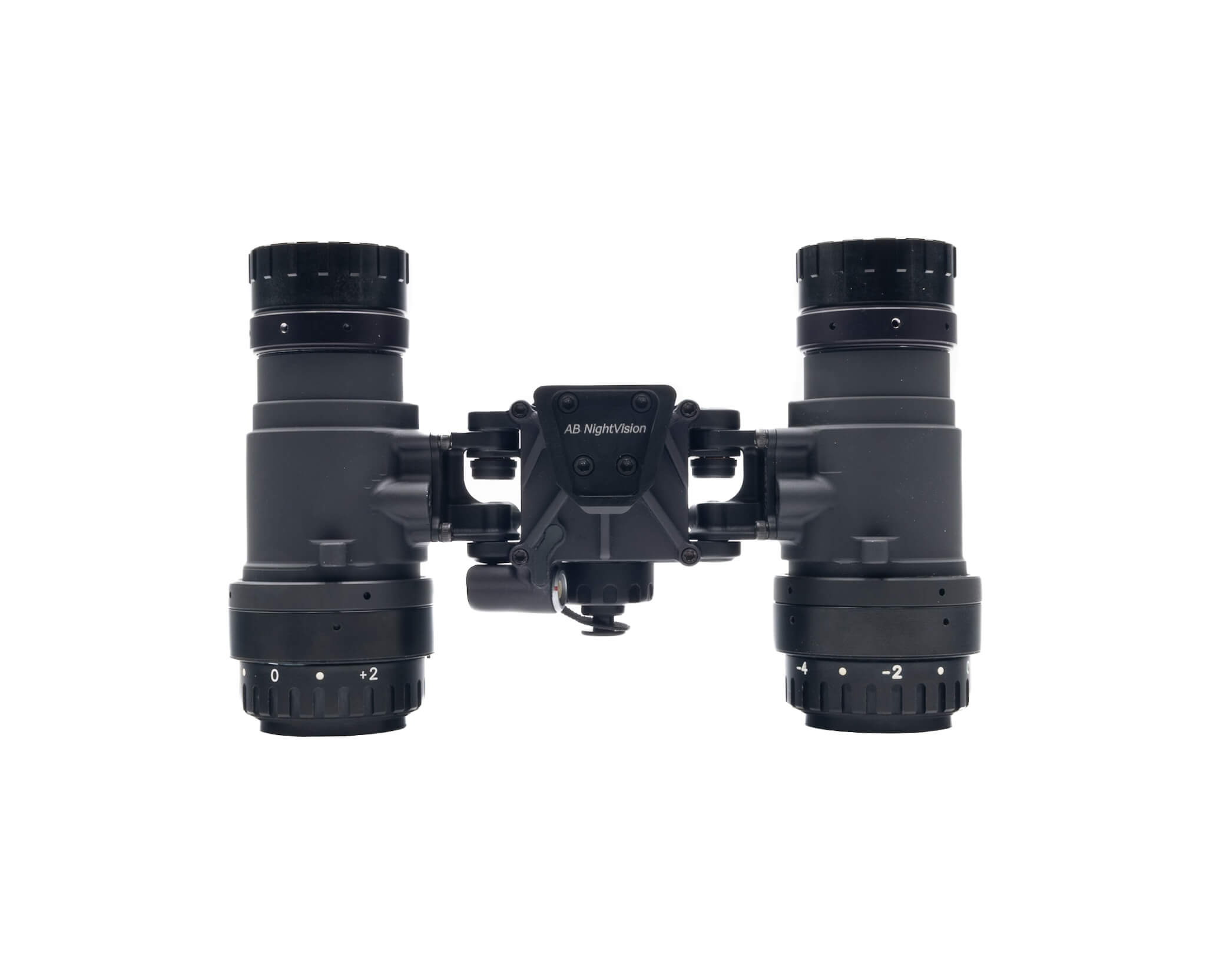

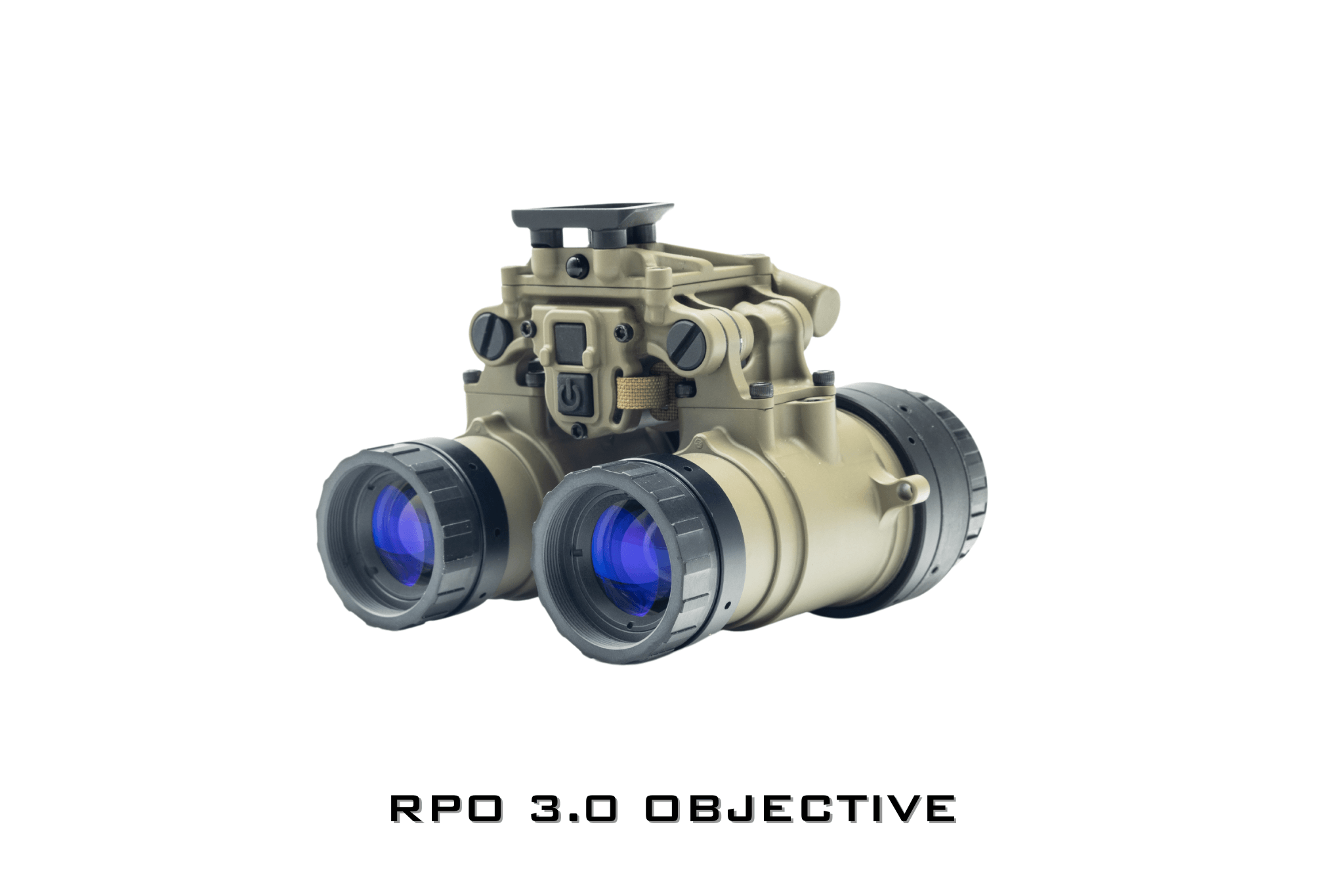

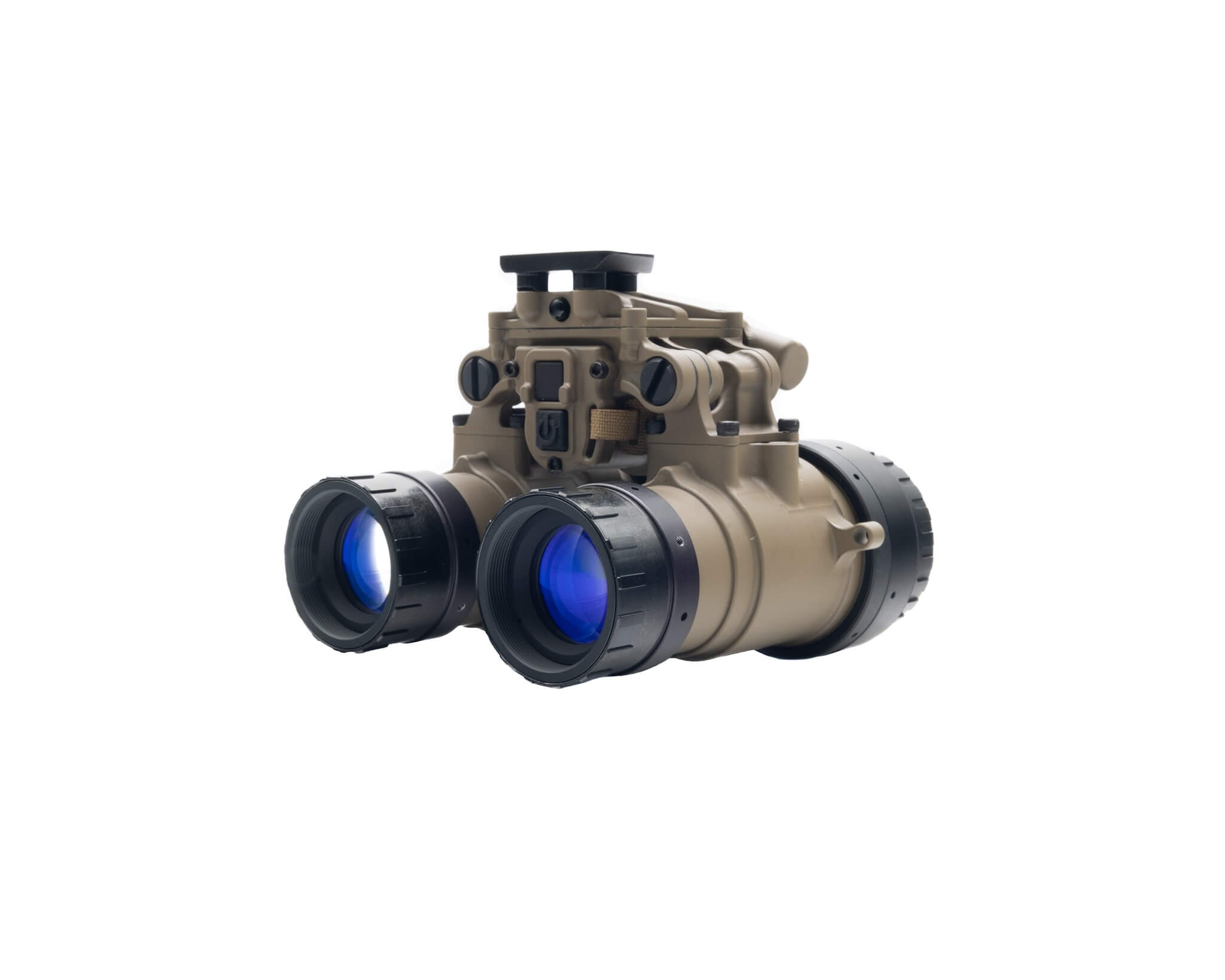

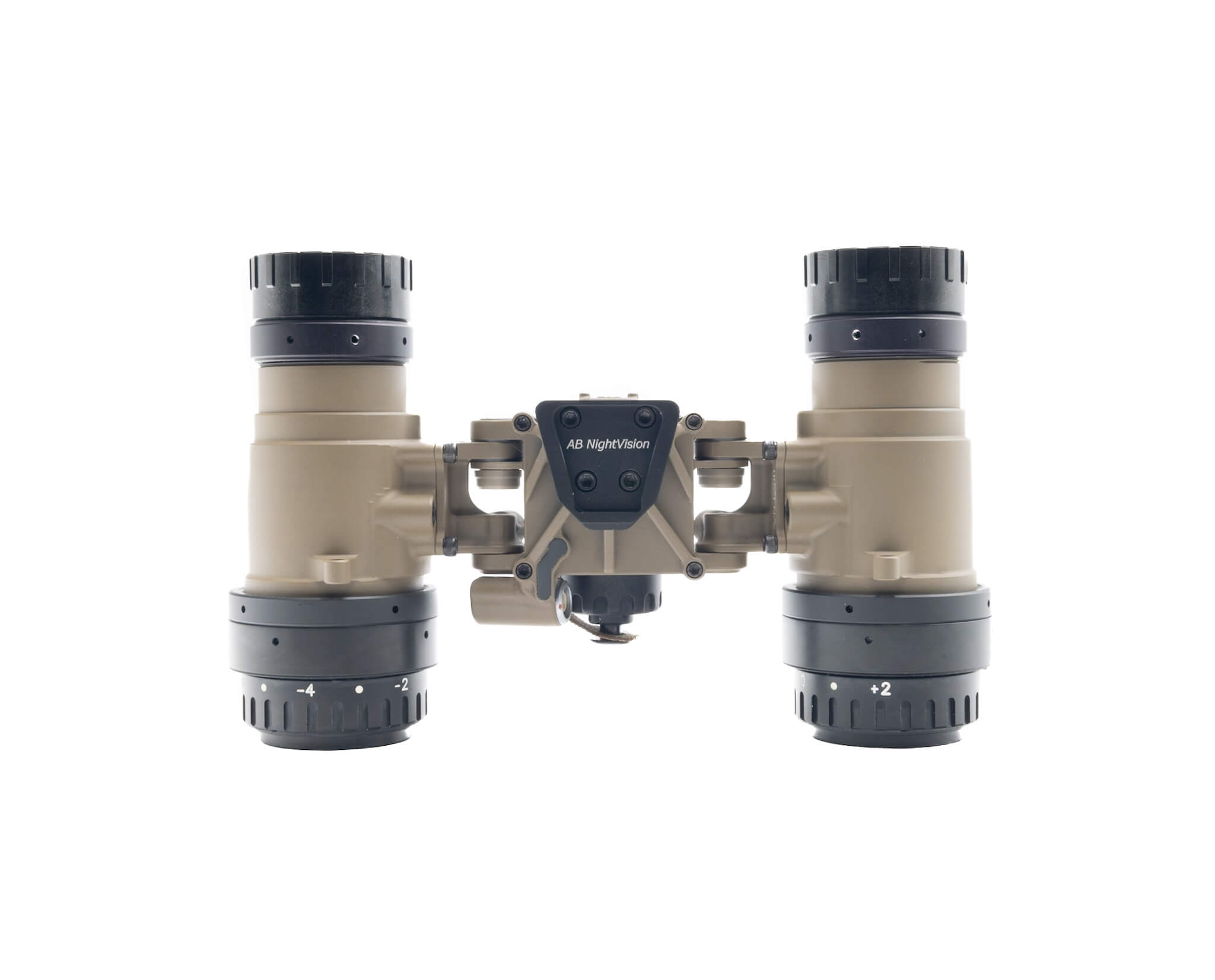

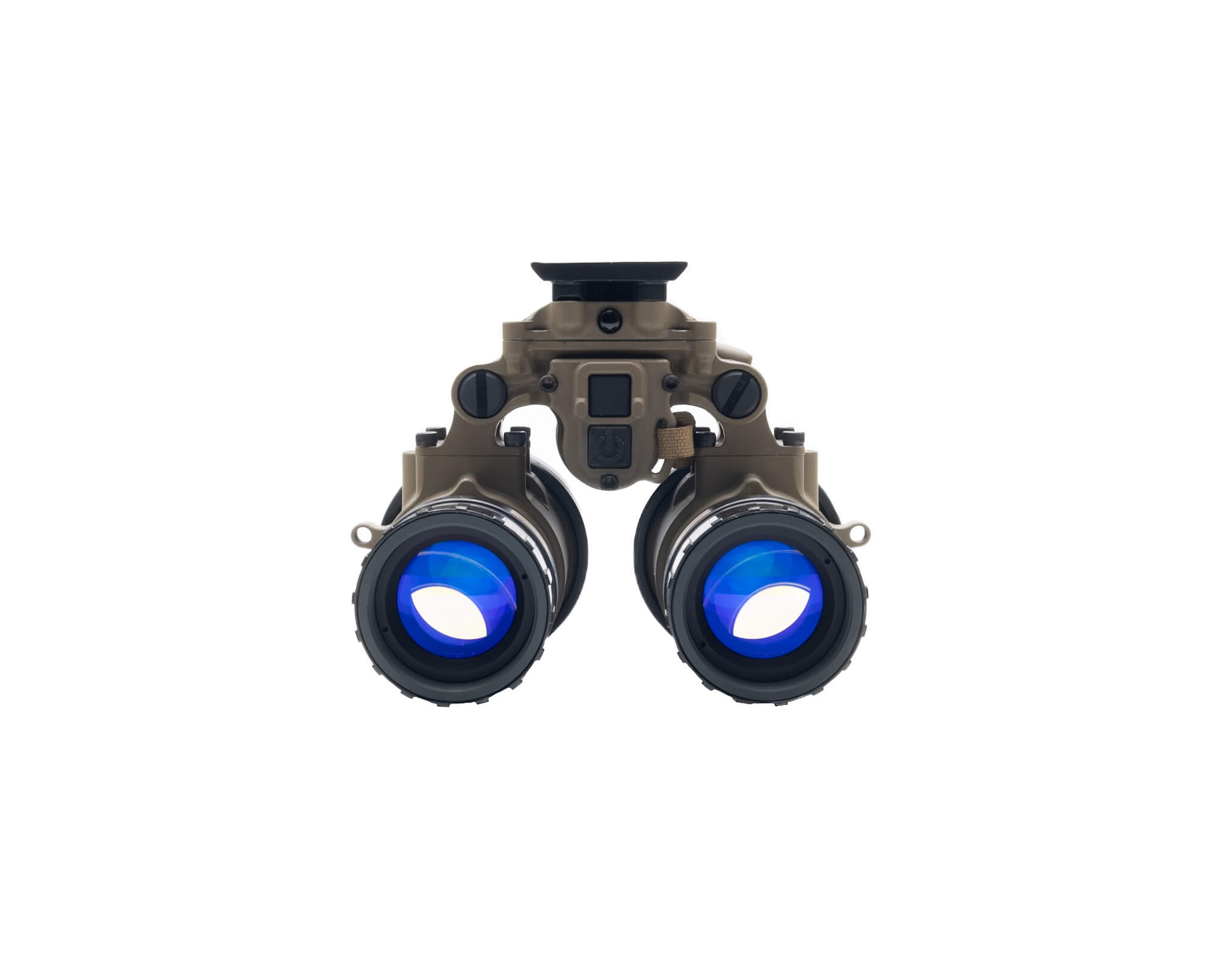

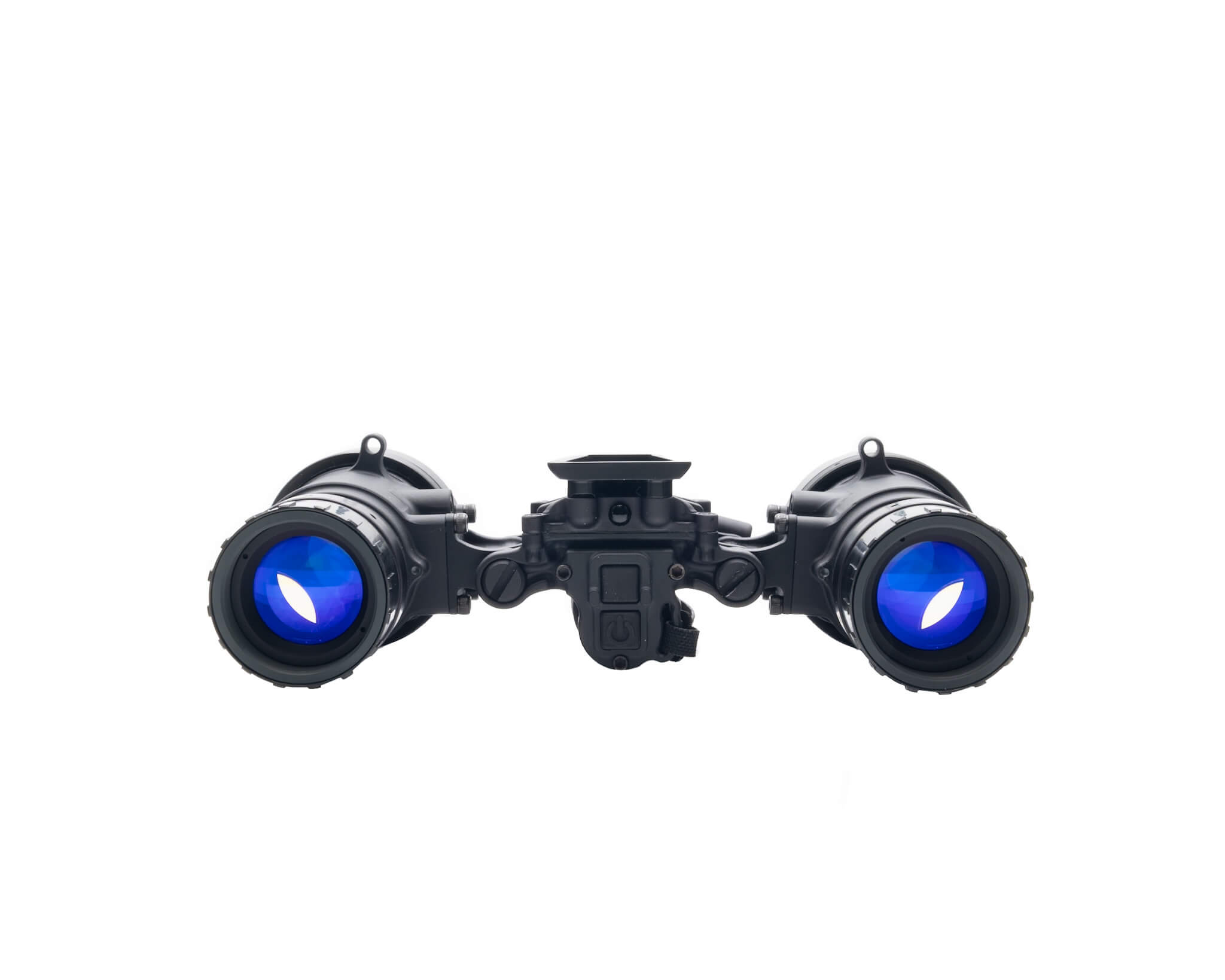

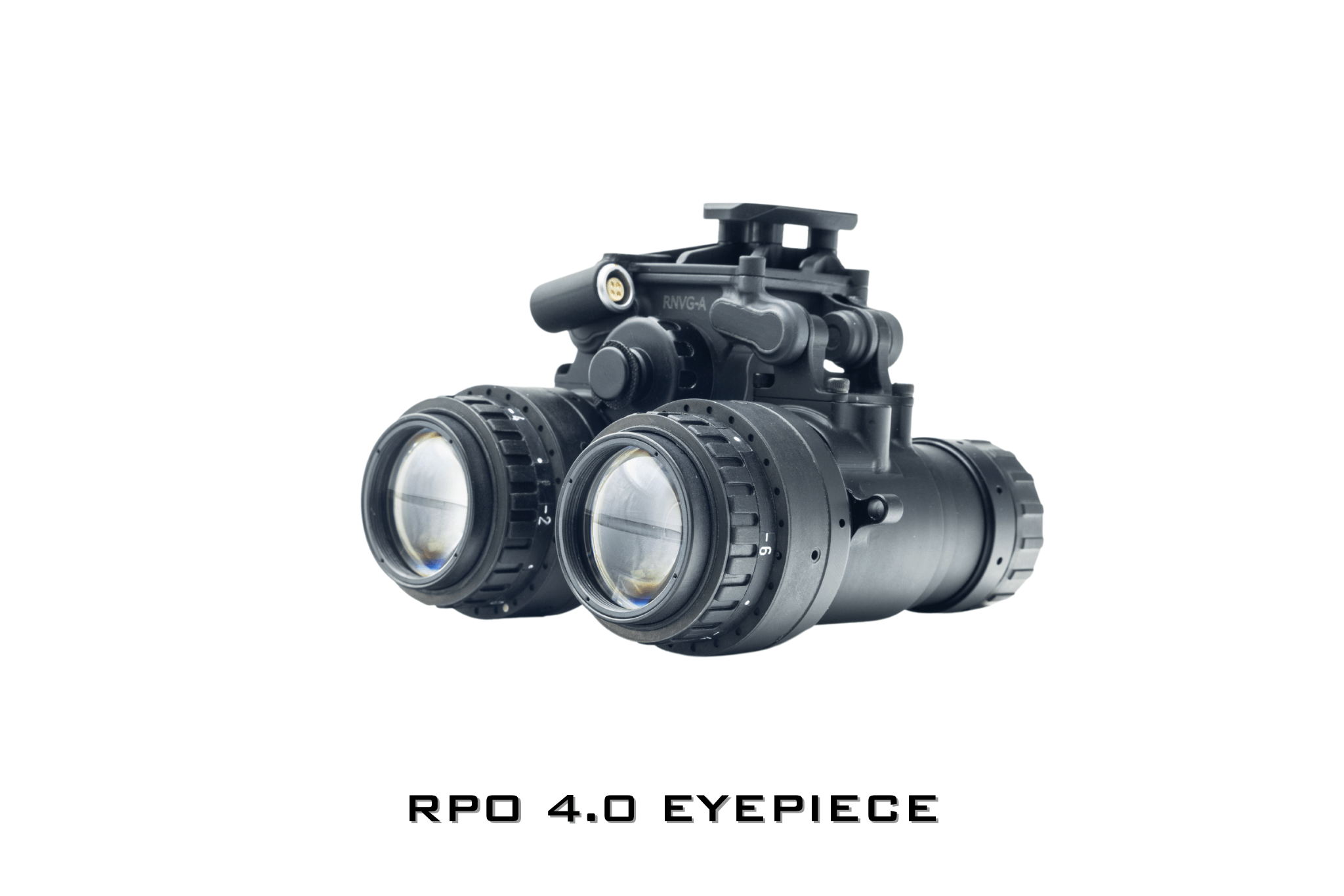

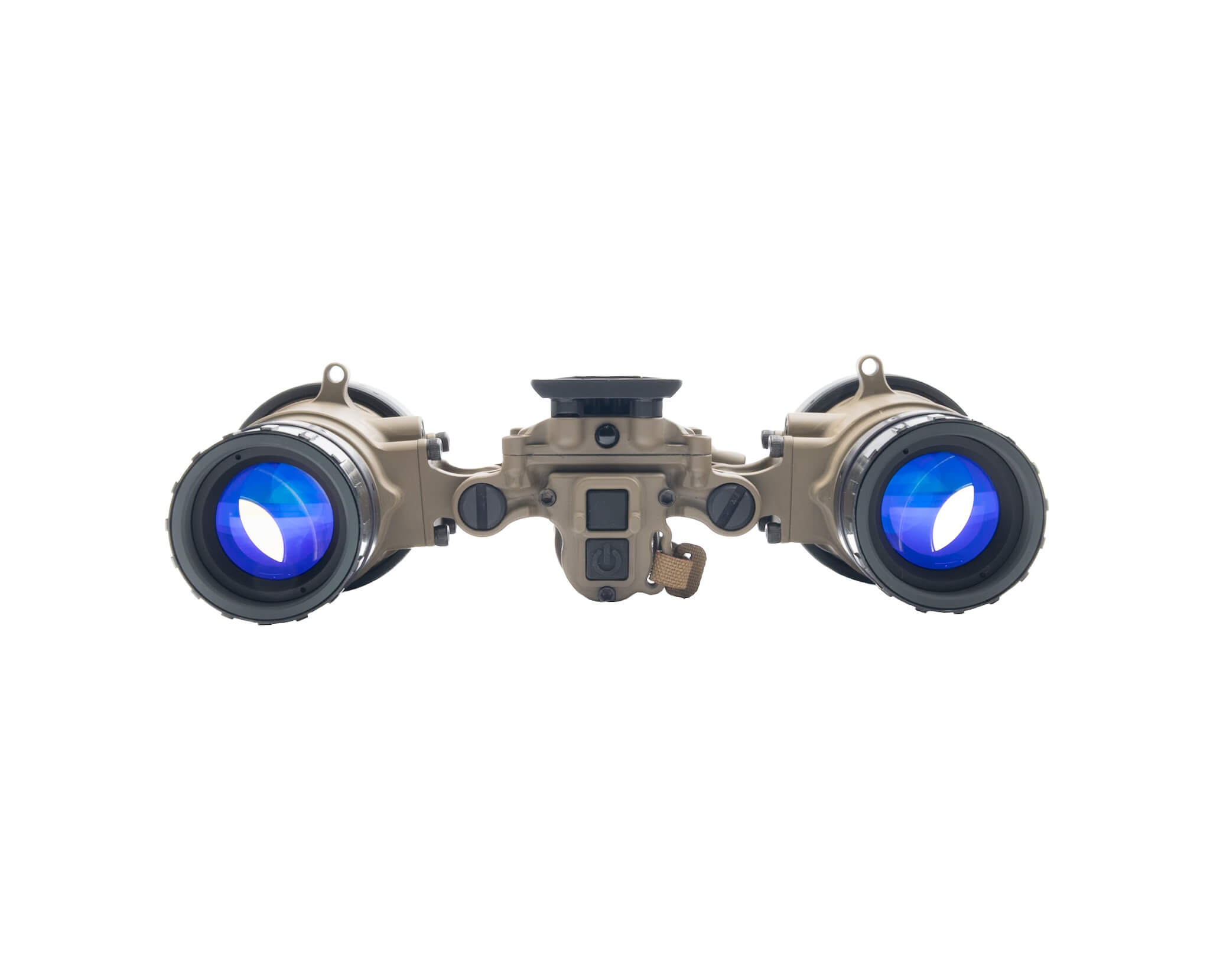

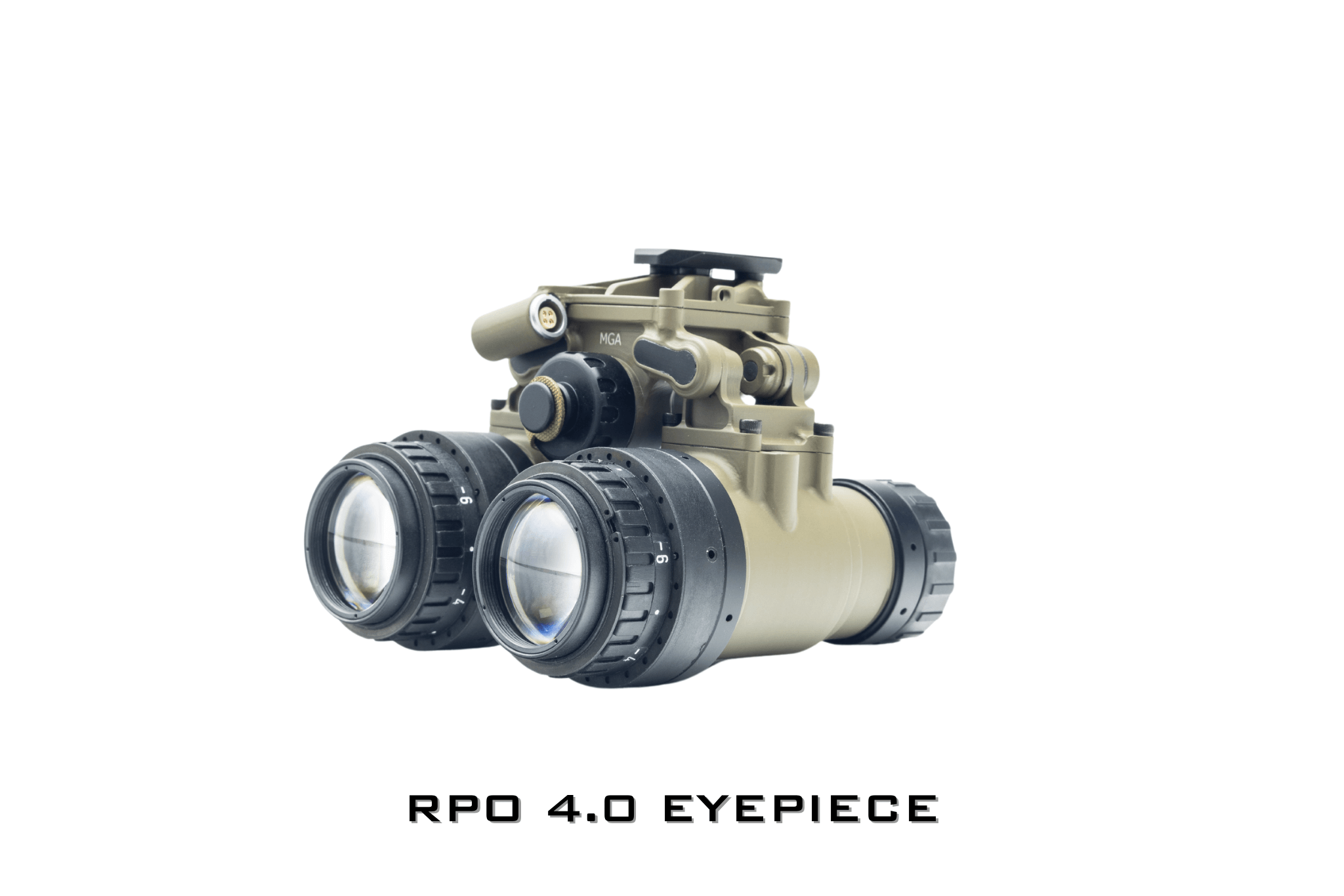

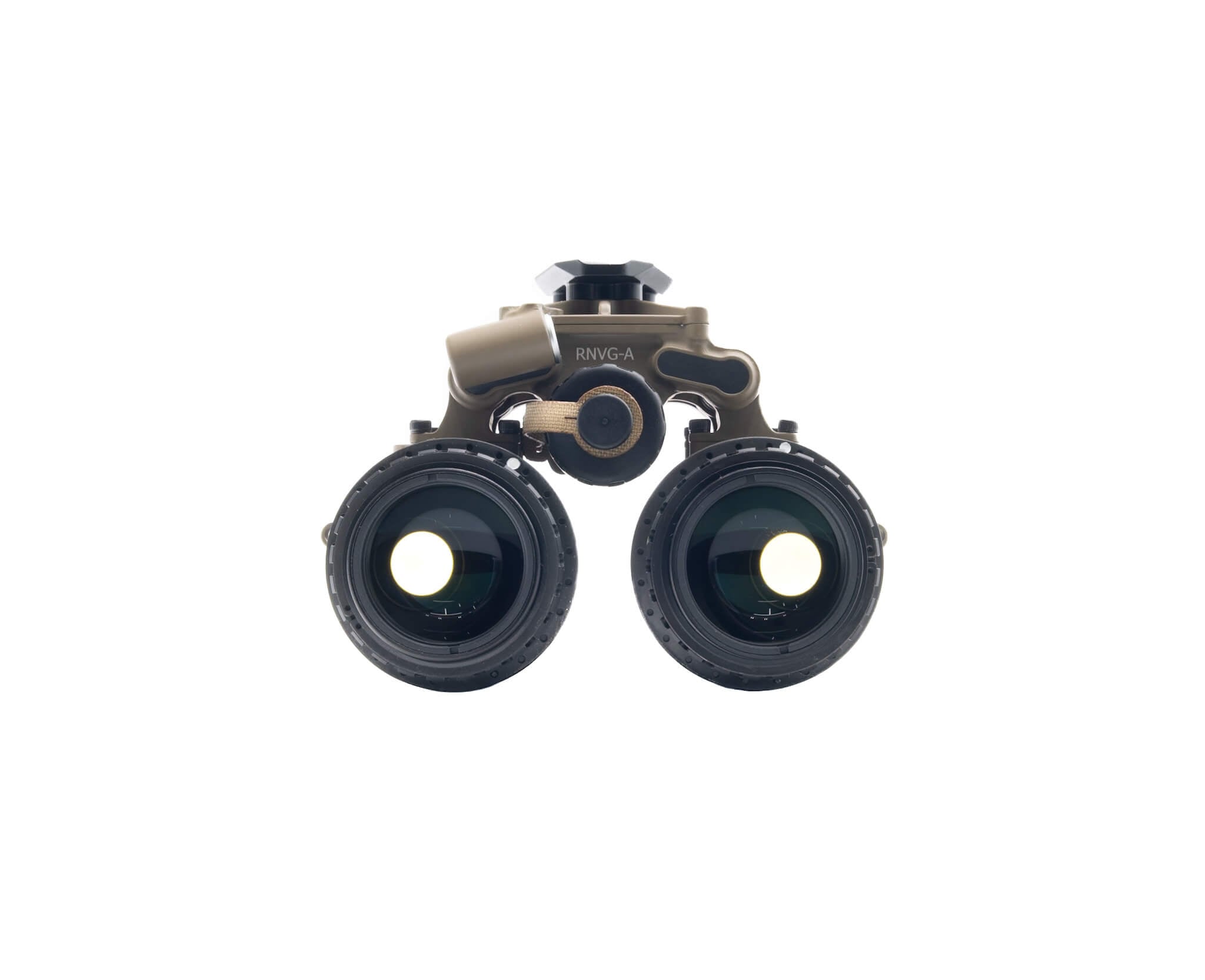

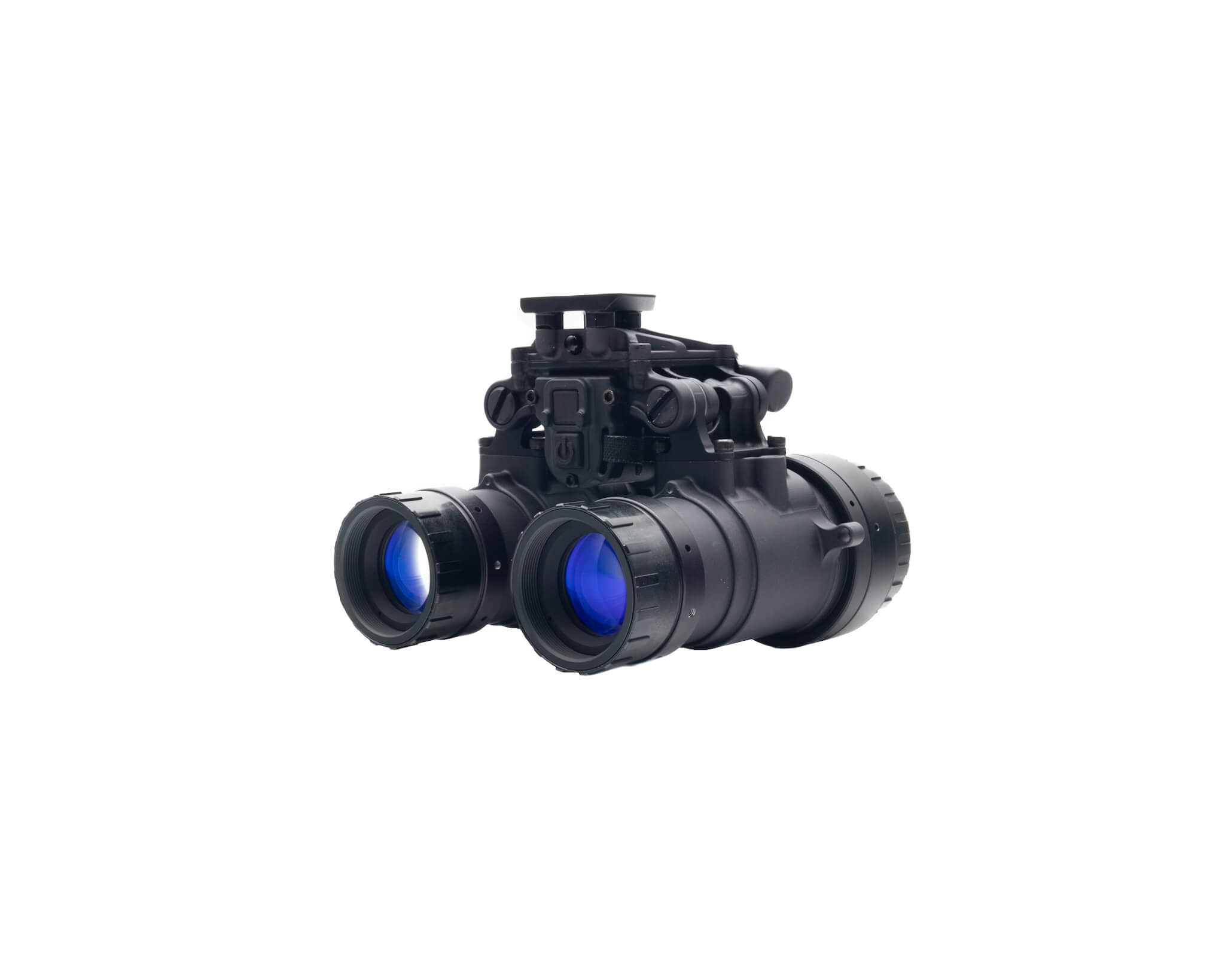

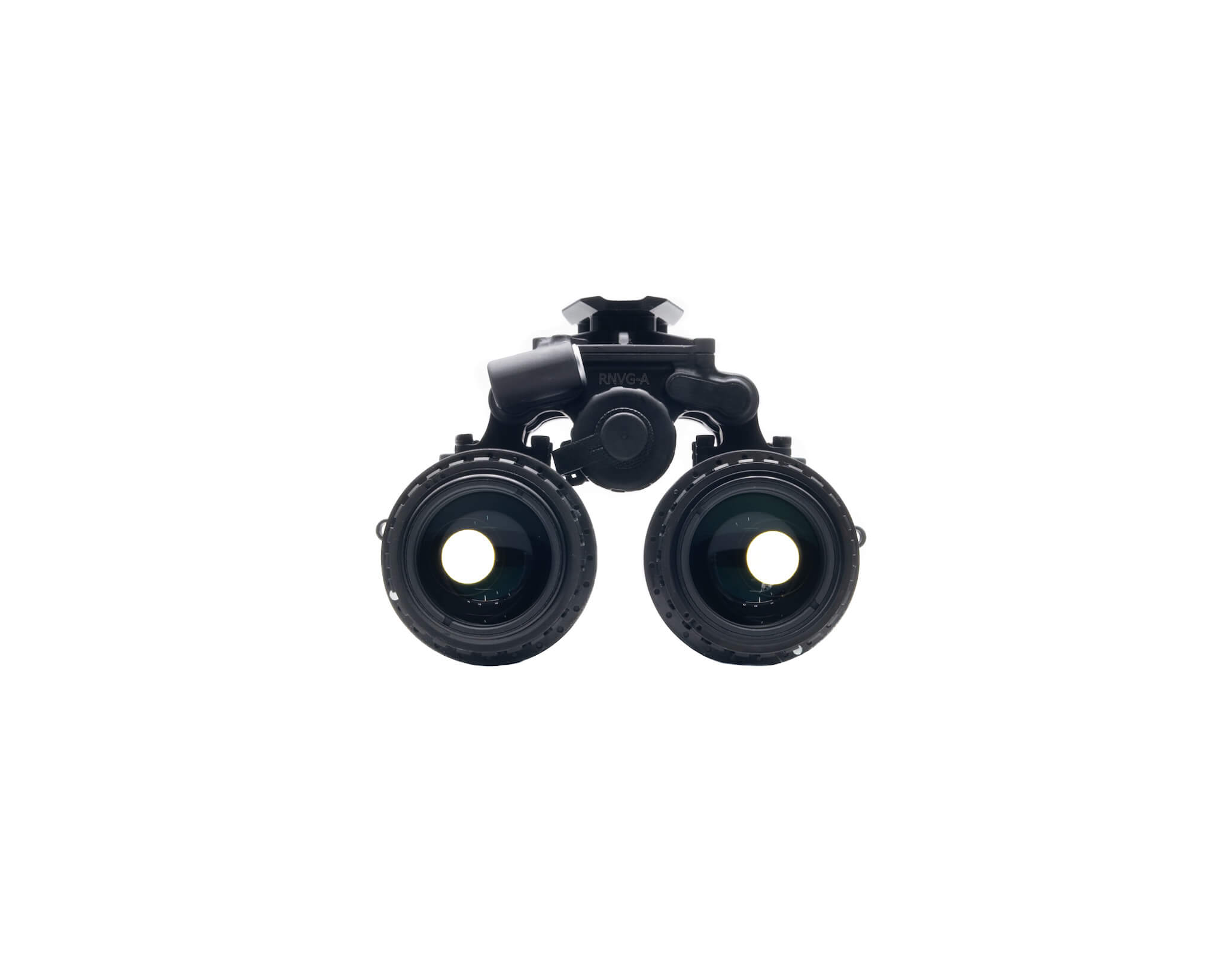

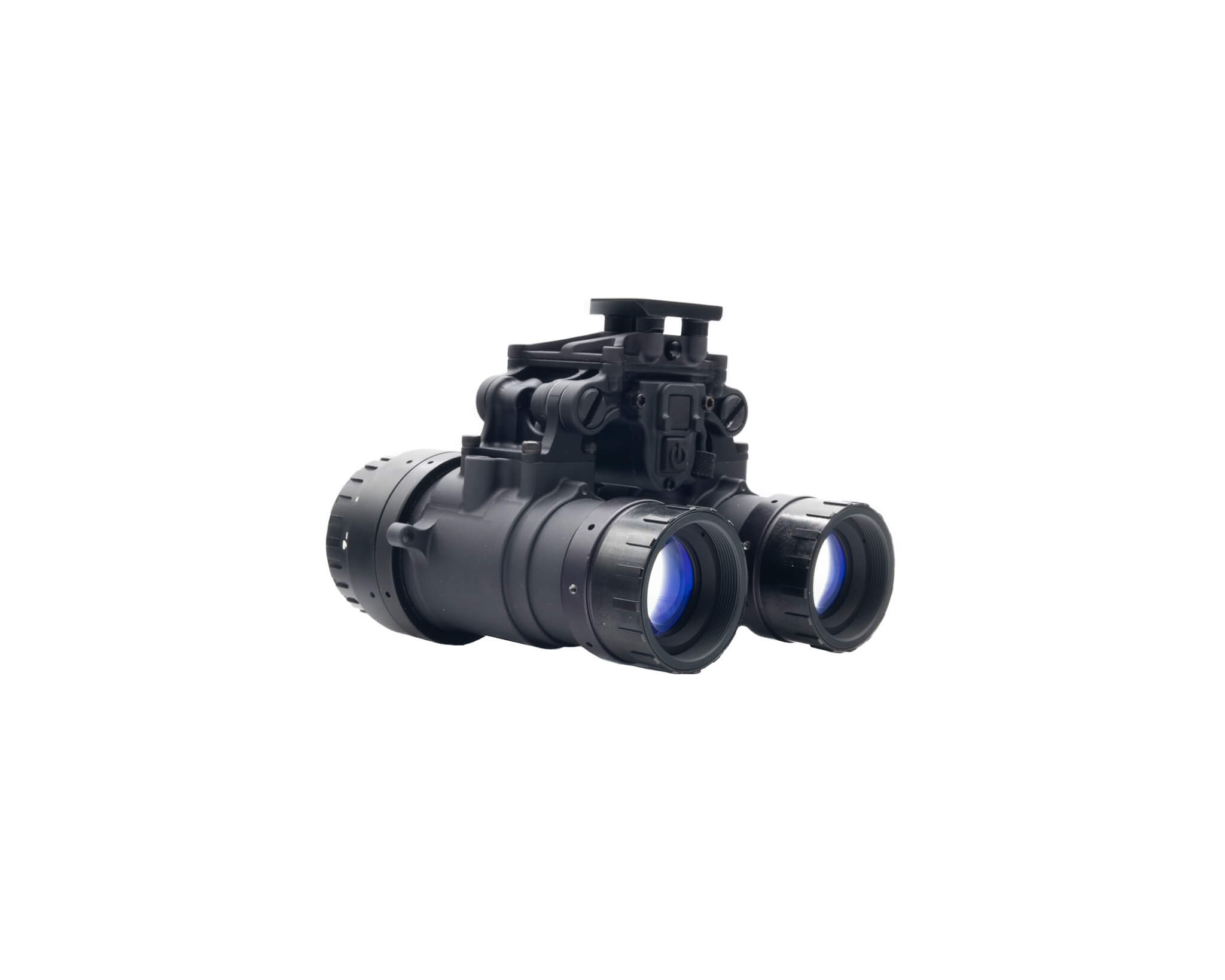

The RNVG-A (ARNVG) combines rugged construction with advanced functionality. The billet machined aircraft-grade aluminum housing is engineered to withstand rigorous conditions and surpass MIL-STD-810H drop test criteria. The device uses a single CR123A battery and features an auxiliary LEMO port for compatibility with external battery packs.
Image Intensifiers
ELBIT XLS/XLSHย
- Gen 3 18mm image intensifier
- Center Res min: 64
- SNR min: 21
- EBI max: 2.5
- HALO max: 1.25
- Power Supply: gated or non-gated format.ย
- Reliability @ 10,000 hours minimum
- Available in P45 (F9400/F9410/F9415) white
- phosphor and P43 (F9800/F9810/F9815) green
- Commercial Spot Spec
ELBIT SLH
- Gen 3 18mm image intensifier
- Center Res min: 64
- SNR min: 24
- EBI max: 2.5
- HALO max: 1.25
- Power Supply: gated or non-gated format.ย
- Reliability @ 10,000 hours minimum
- Available in P45 (F9400/F9410/F9415) white
- phosphor and P43 (F9800/F9810/F9815) green
- Commercial Spot Spec
ELBIT YH
- Gen 3 18mm image intensifier
- Center Res min: 64
- SNR min: 25
- EBI max: 2.5
- HALO max: 1.0
- Power Supply: gated or non-gated format.ย
- Reliability @ 10,000 hours minimum
- Available in P45 (F9400/F9410/F9415) white
- phosphor and P43 (F9800/F9810/F9815) green
- Milspec Spot Spec
ELBIT VH
- Gen 3 18mm image intensifier
- Center Res min: 64
- SNR min: 28
- EBI max: 2.5
- HALO max: .85
- Power Supply: gated or non-gated format.ย
- Reliability @ 10,000 hours minimum
- Available in P45 (F9400/F9410/F9415) white
- phosphor and P43 (F9800/F9810/F9815) green
- Aviation Spot Spec
L3HARRIS 18UA/UM
- Gen 3 18mm image intensifier
- Center Res min: 64
- FOM min: 1540ย
- SNR min: 24
- EBI max: 2.5
- HALO max: 1.0
- Power Supply: autogated
- Aviation Spot Spec (UA) or Milspec Spot Spec (UM)
L3HARRIS 24UA/UM
- Gen 3 18mm image intensifier
- Center Res min: 64
- FOM min: 2160
- SNR min: 33.7
- EBI max: 2.5
- HALO max: 1.0
- Power Supply: autogated
- Aviation Spot Spec (UA) or Milspec Spot Spec (UM)
L3HARRIS FACTORY DEVICES (PVS-31A, BNVD-1531, GPNVG HIGH FOM)ย
- Gen 3 18mm image intensifier
- Center Res min: 72
- FOM min: 2376
- SNR min: 33
- EBI max: 2.5
- HALO max: .85
- Power Supply: autogated
- Milspec Spot Spec (UM)
