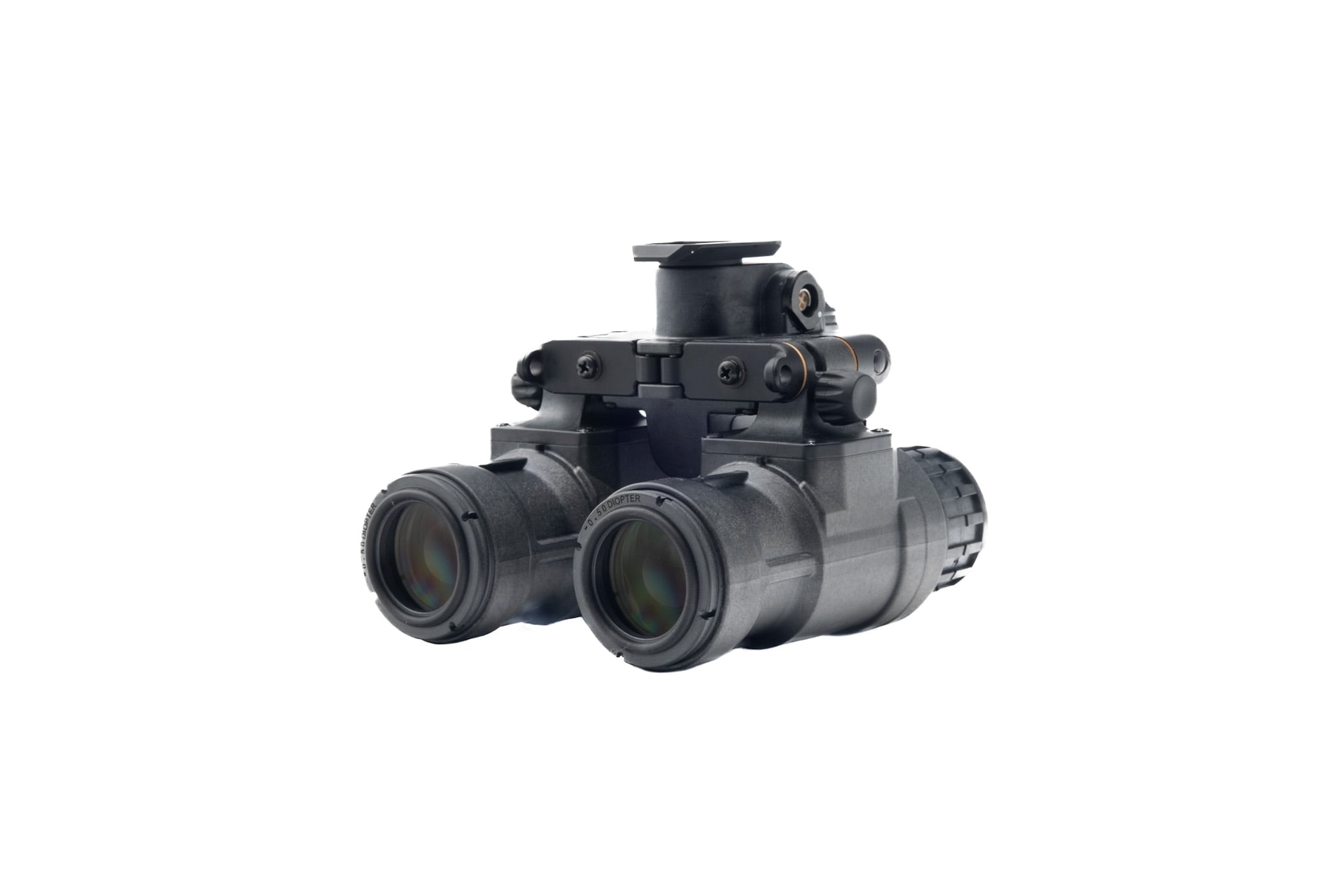

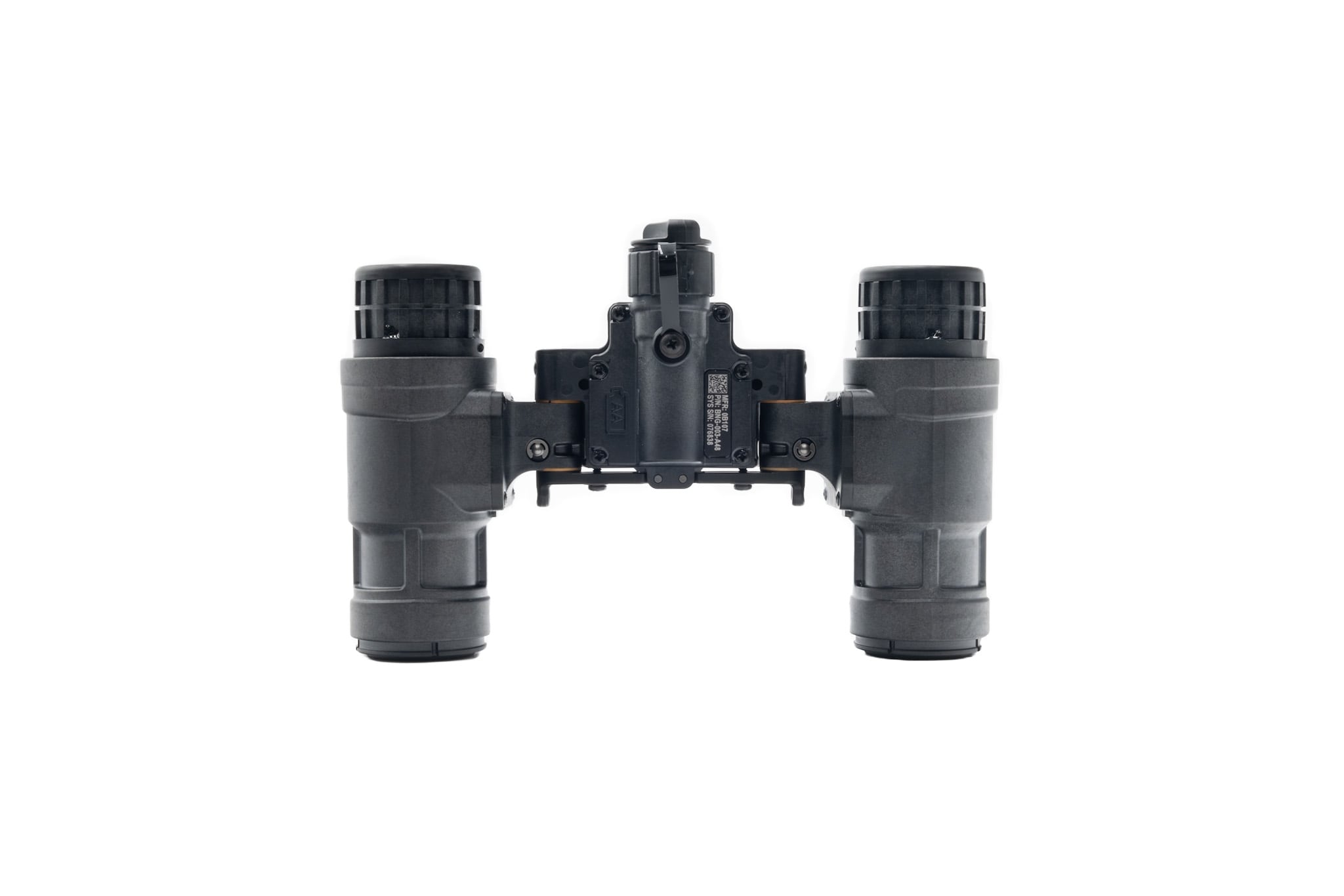

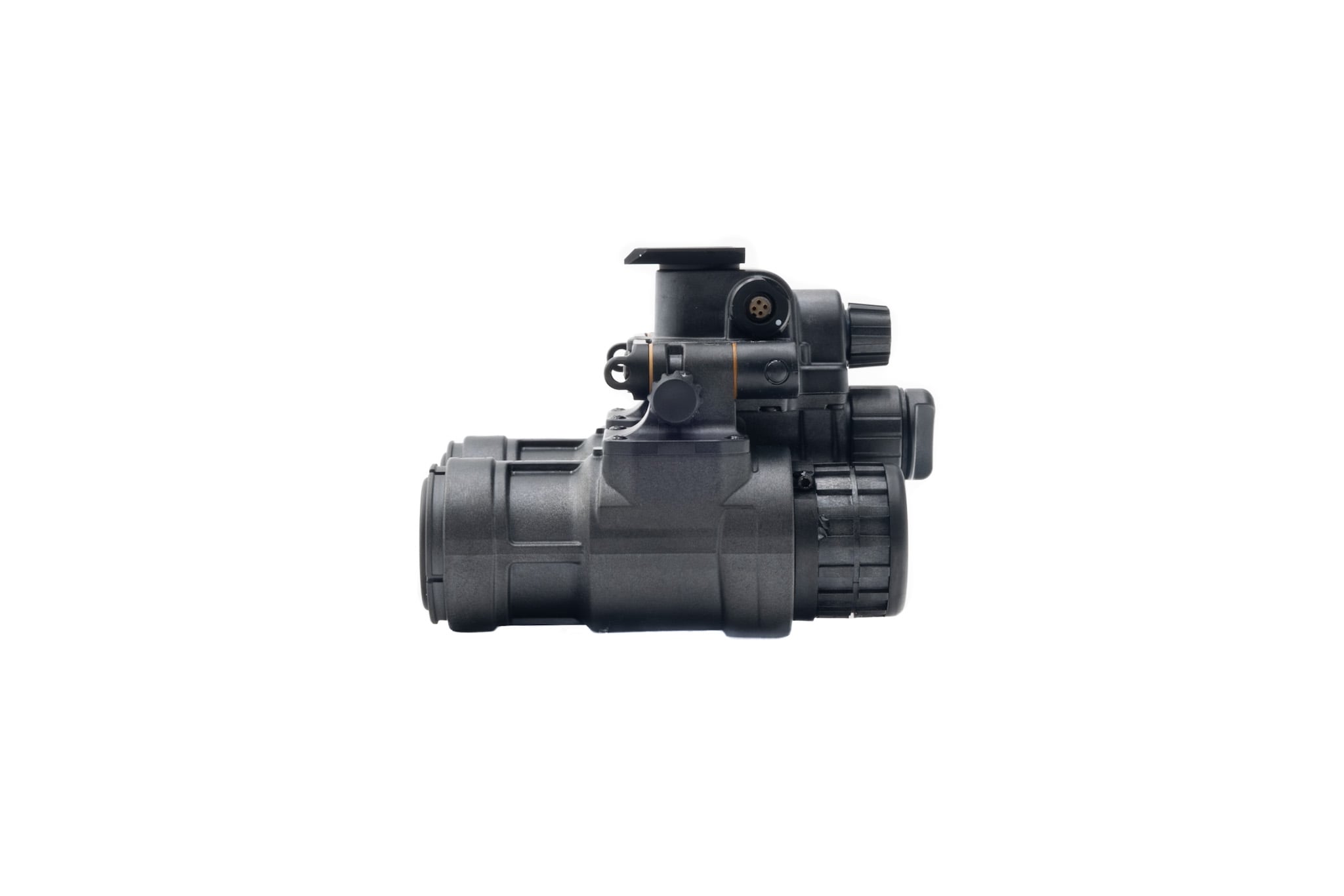

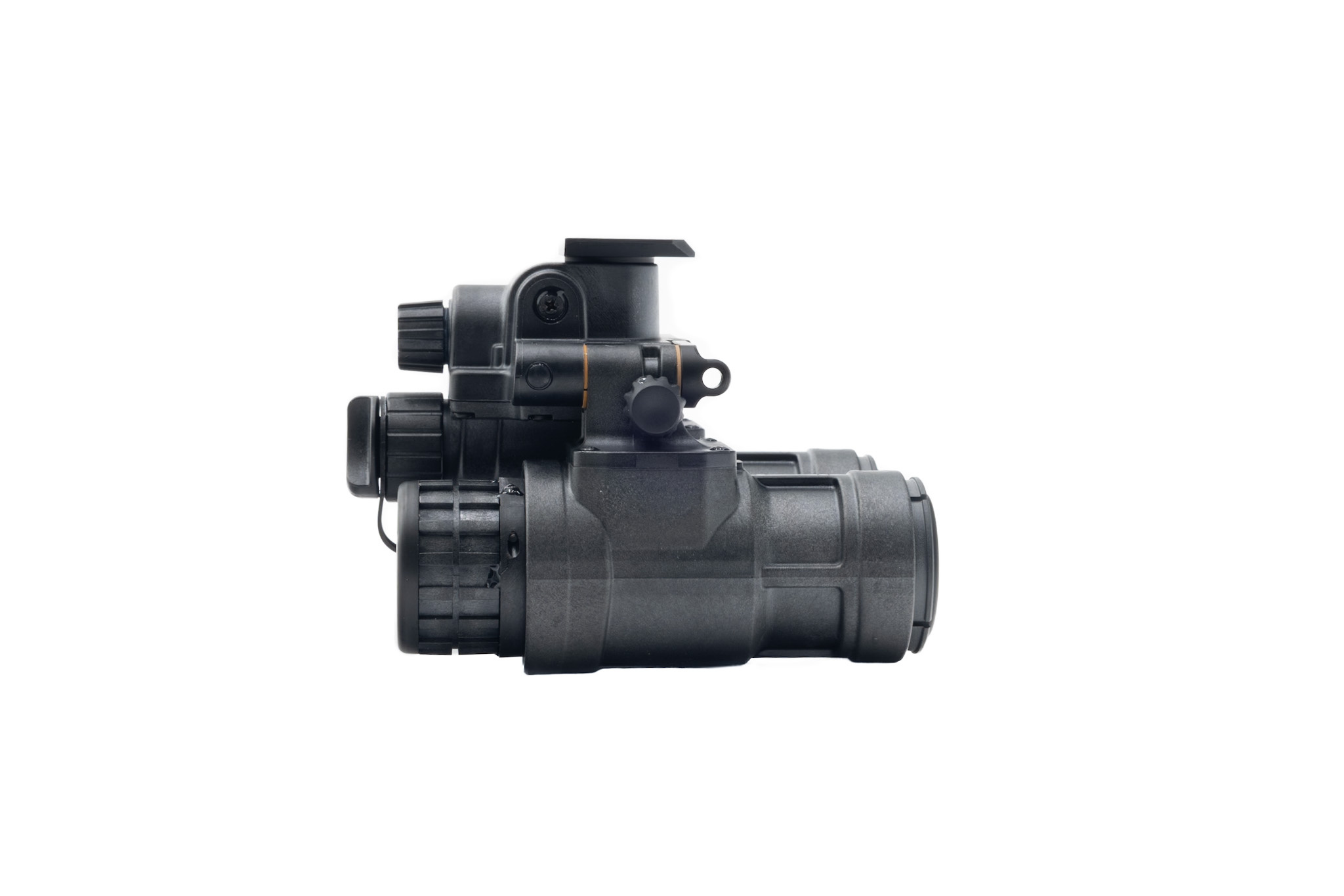

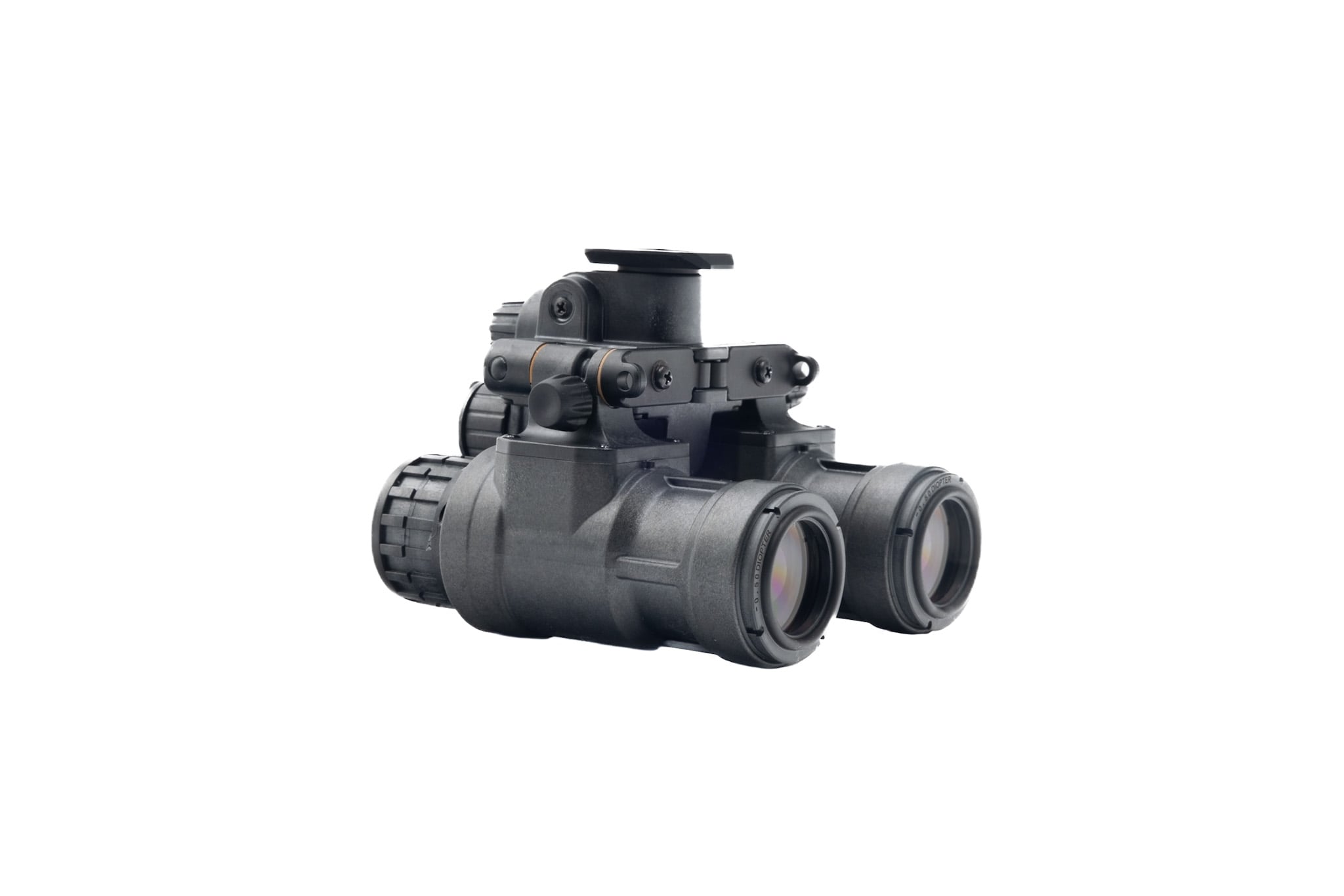

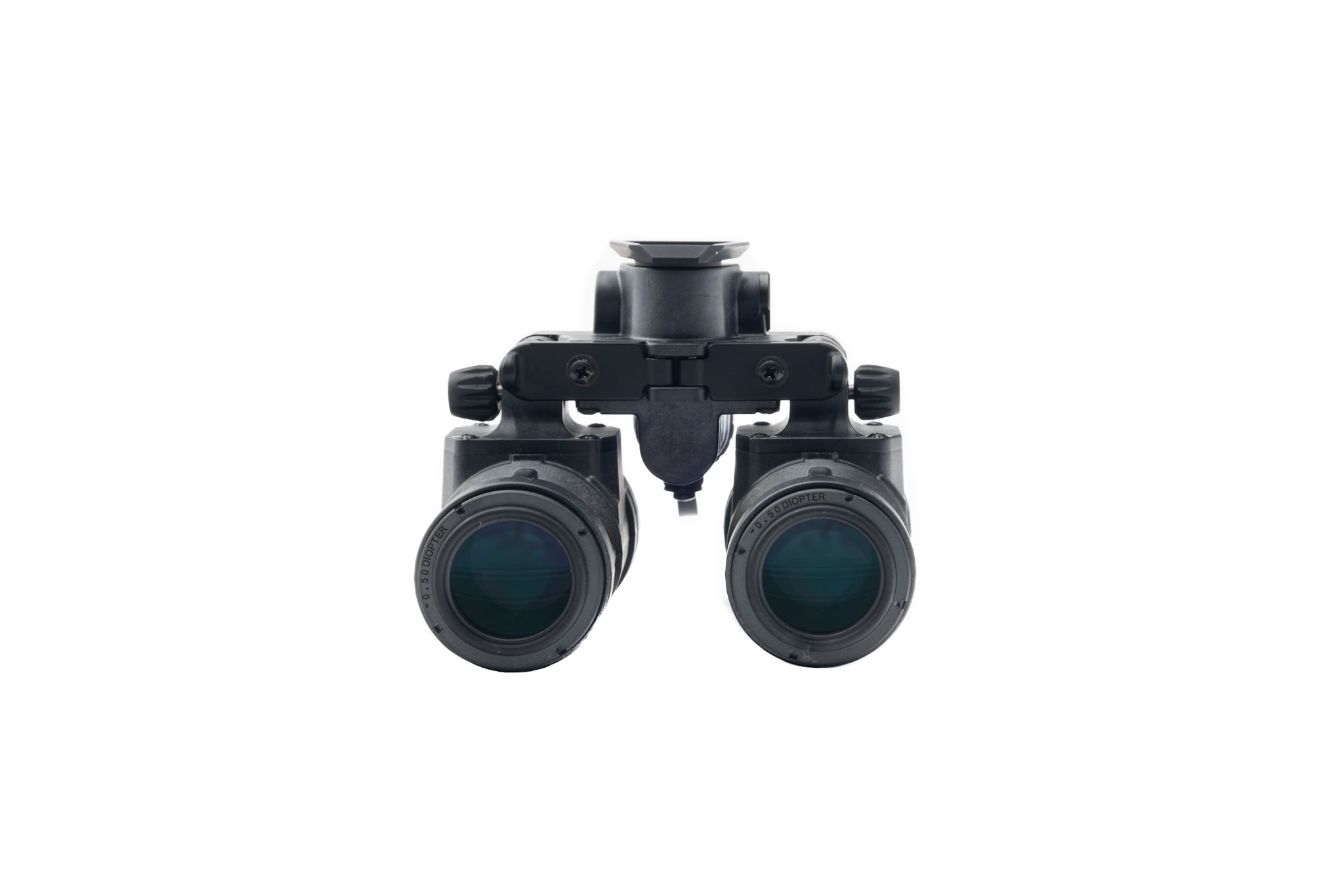

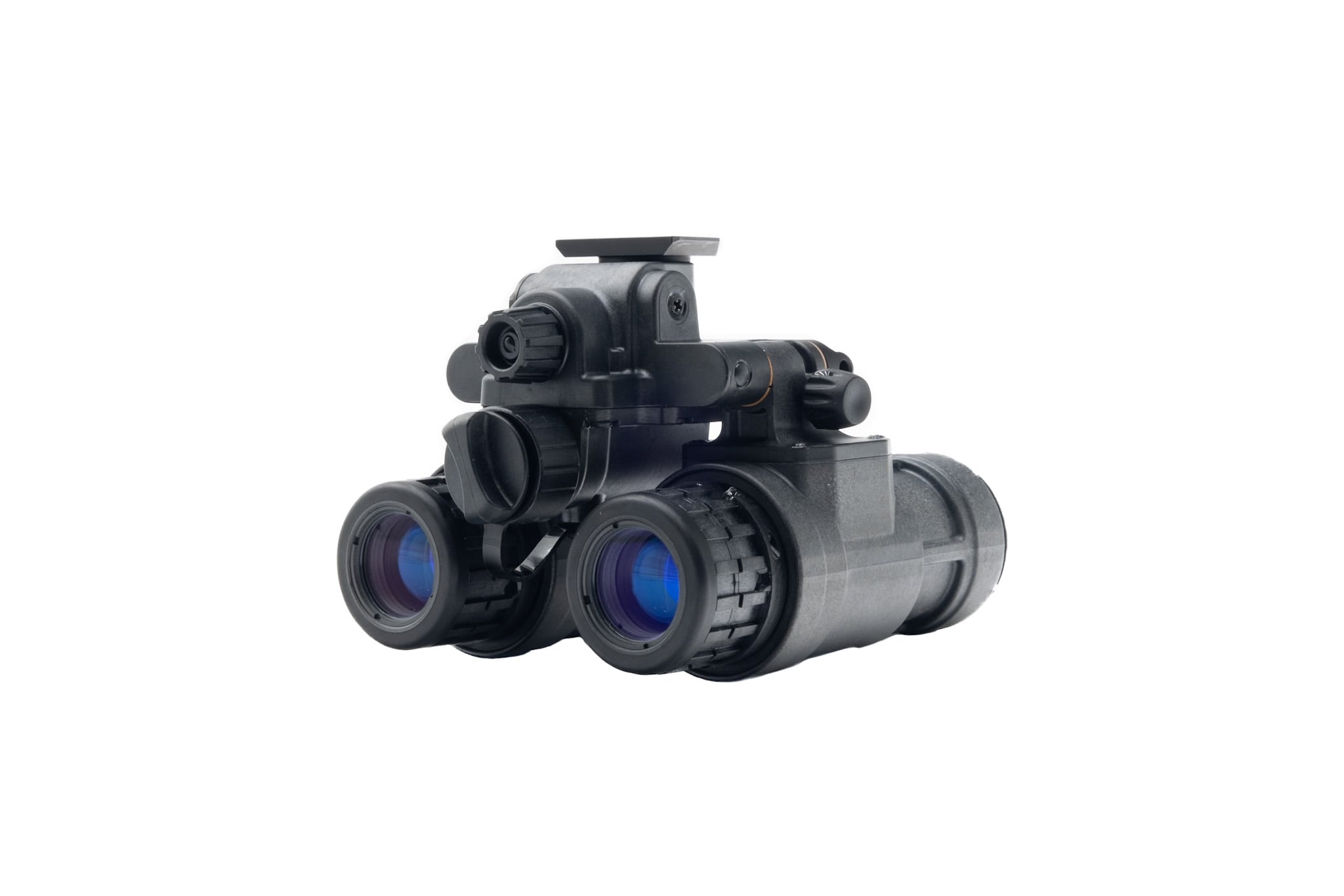

L3HARRIS BNVD PVS-31A

The device features an ergonomic, low-profile design that enhances situational awareness over traditional single-tube goggles. Developed with input from Special Forces operators, the BNVD is engineered to boost system resolution, greatly minimize head-mounted weight, and enhance the overall center of gravity for improved comfort and performance.

Features

• Manual system gain and focus adjustments for custom image quality optimization
• Lightweight ergonomic design reduces head-borne weight and decreases neck strain
• Optional diopter lenses optimize operator preference for visual acuity
• Rotating binocular design allows low profile against helmet when in stowed position and the option to use as a single monocular
• Works with currently fielded dovetail helmet mounts
• Auto OFF when stowed; resumes power when deployed
• LED indicators in left and right monocular alert the operator when the BNVD has no less than 10 minutes of battery life remaining
• Replaceable/upgradeable I2 tube assemblies.

L3HARRIS FACTORY DEVICES (PVS-31A, BNVD-1531, GPNVG HIGH FOM)
• Gen 3 18mm image intensifier
• Center Res min: 72
• FOM min: 2376
• SNR min: 33
• EBI max: 2.5
• HALO max: .85
• Power Supply: autogated
