FDE MGA

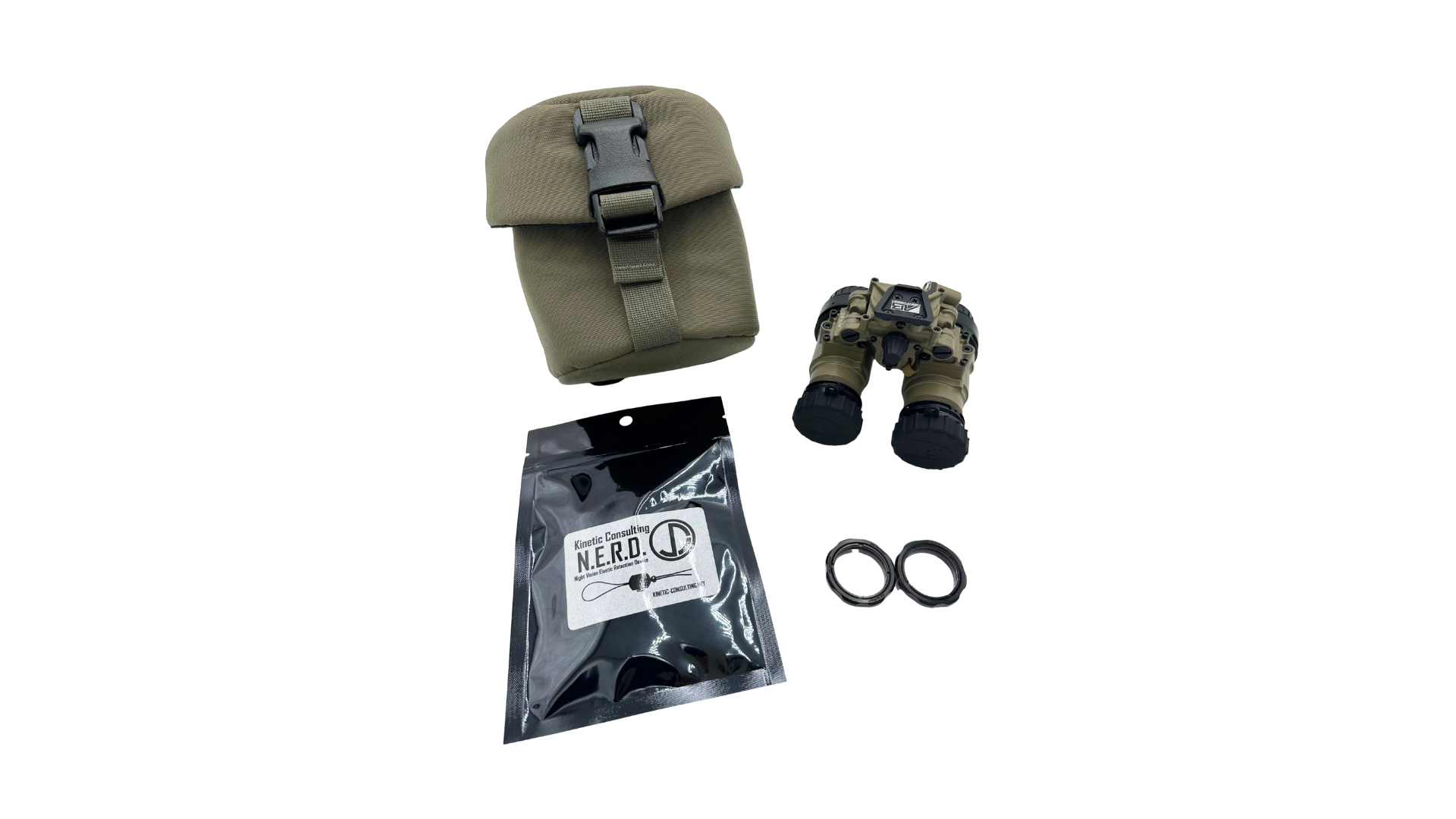

The MGA (Manual Gain Articulating) night vision binocular is an extremely tough, full featured night vision binocular.  The MGA incorporates the proven features of our RNVG-A housing while adding manual gain control.  The housing is billet machined from 7075 alloy aluminum and designed to handle challenging real-world environments.  During drop testing, the housings far exceeded military requirements of MIL-STD-810H drop testing, surviving falls onto bare concrete from heights beyond what lenses and image intensifiers can handle.

The design features a rotary switch for power that also serves as manual gain adjustment.  The IR illuminator is activated by a pushbutton switch. Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition.  The unit is powered by either an onboard 123 battery or auxiliary power from a battery pack using a 4-pin LEMO style connector.

Assembly of the MGA does not require removal of the flex cables from the image tube, preserving your tube’s warranty.  Also, the design does not require the flex to twist or crimp during assembly, further preventing damage. he components of the binocular are media blasted to give a non-reflective matte finish, then black anodized for durability.  For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to give a tough, attractive finish.
