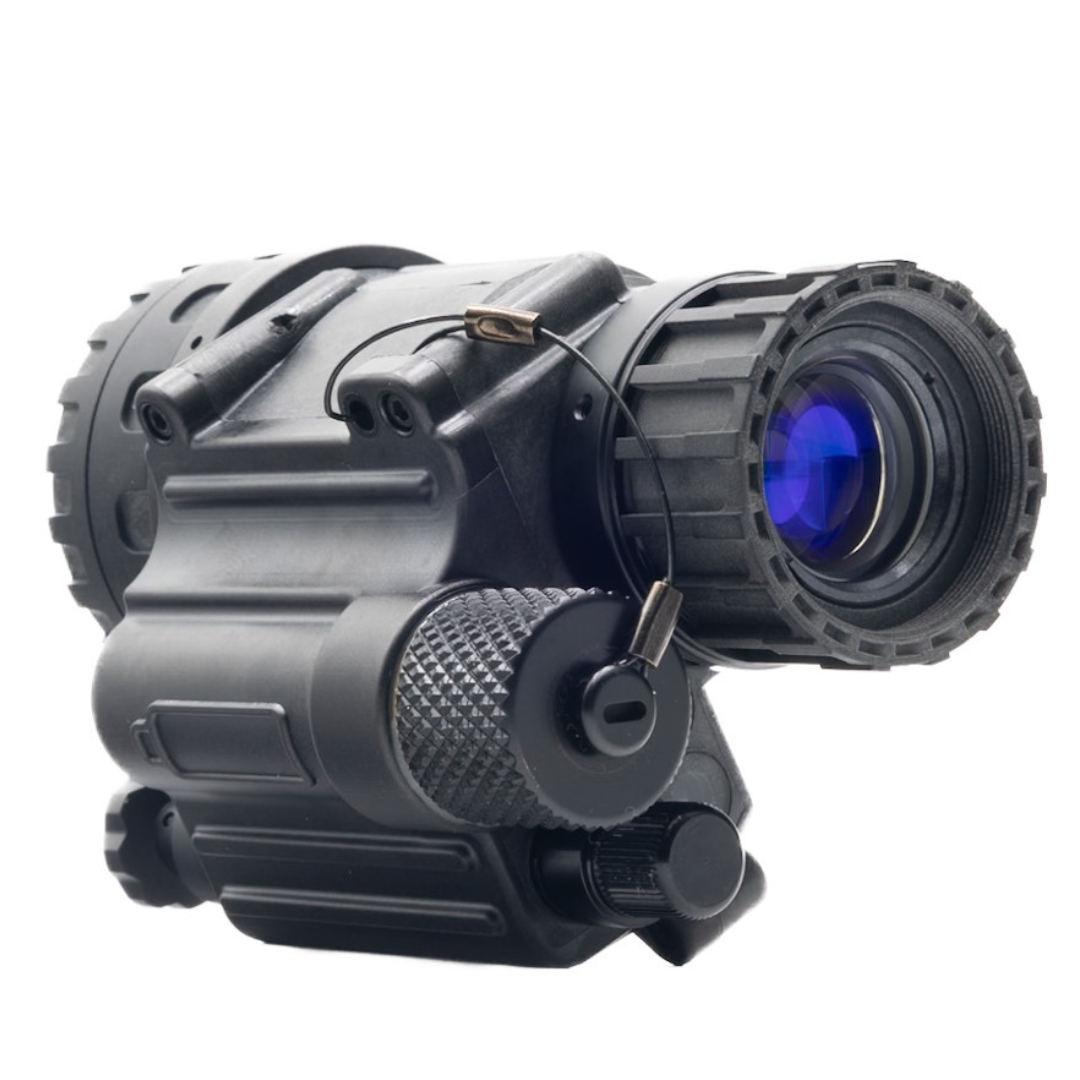

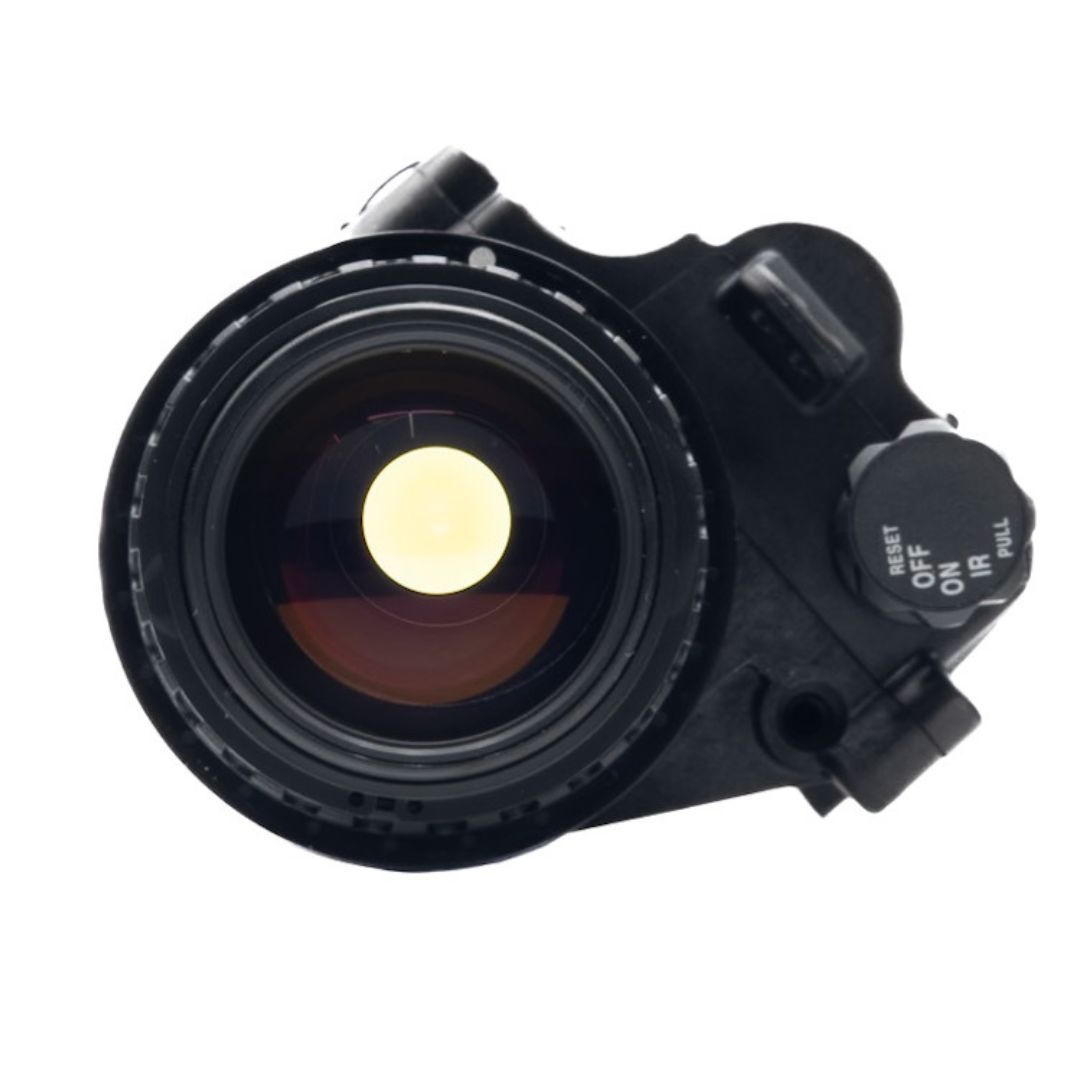

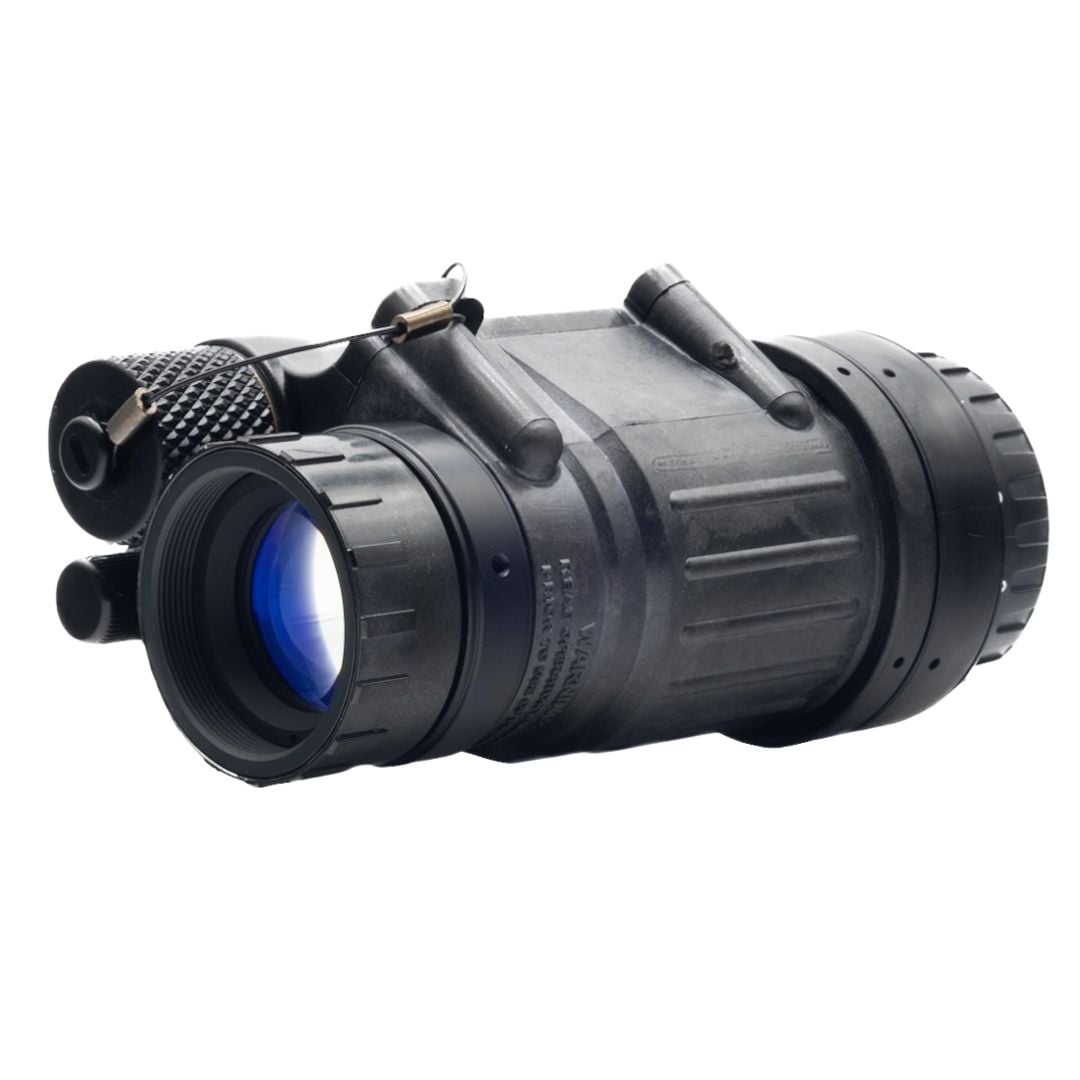

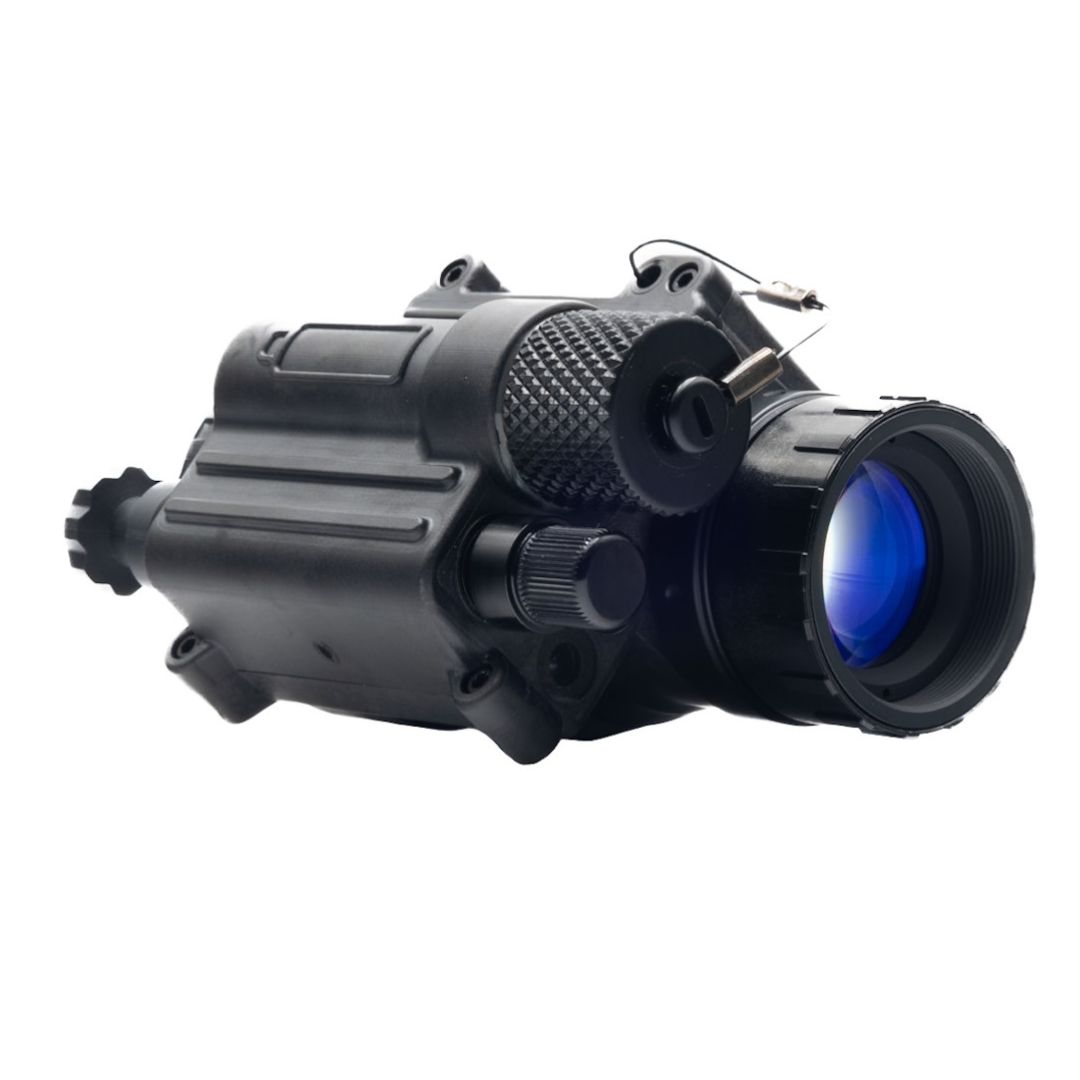

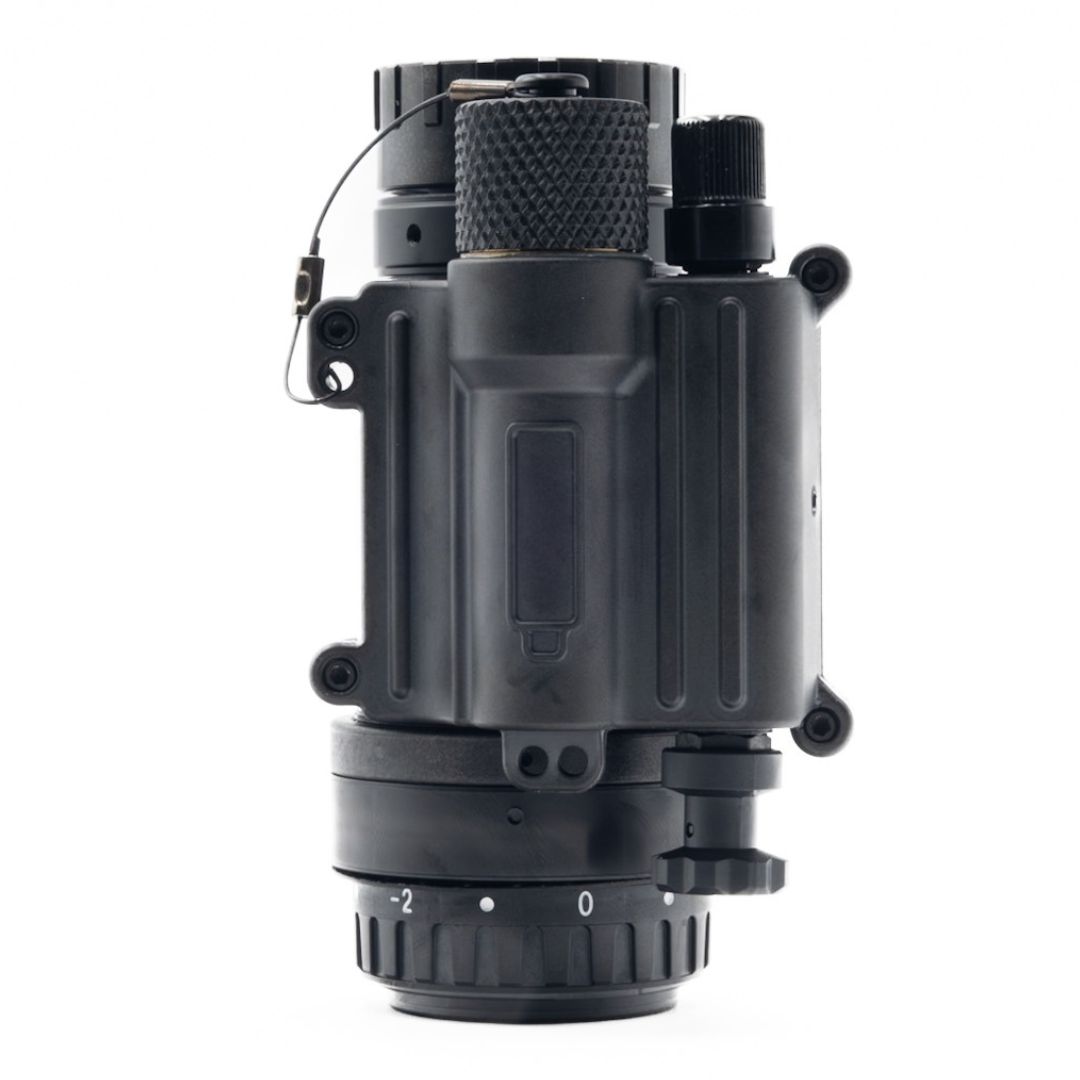

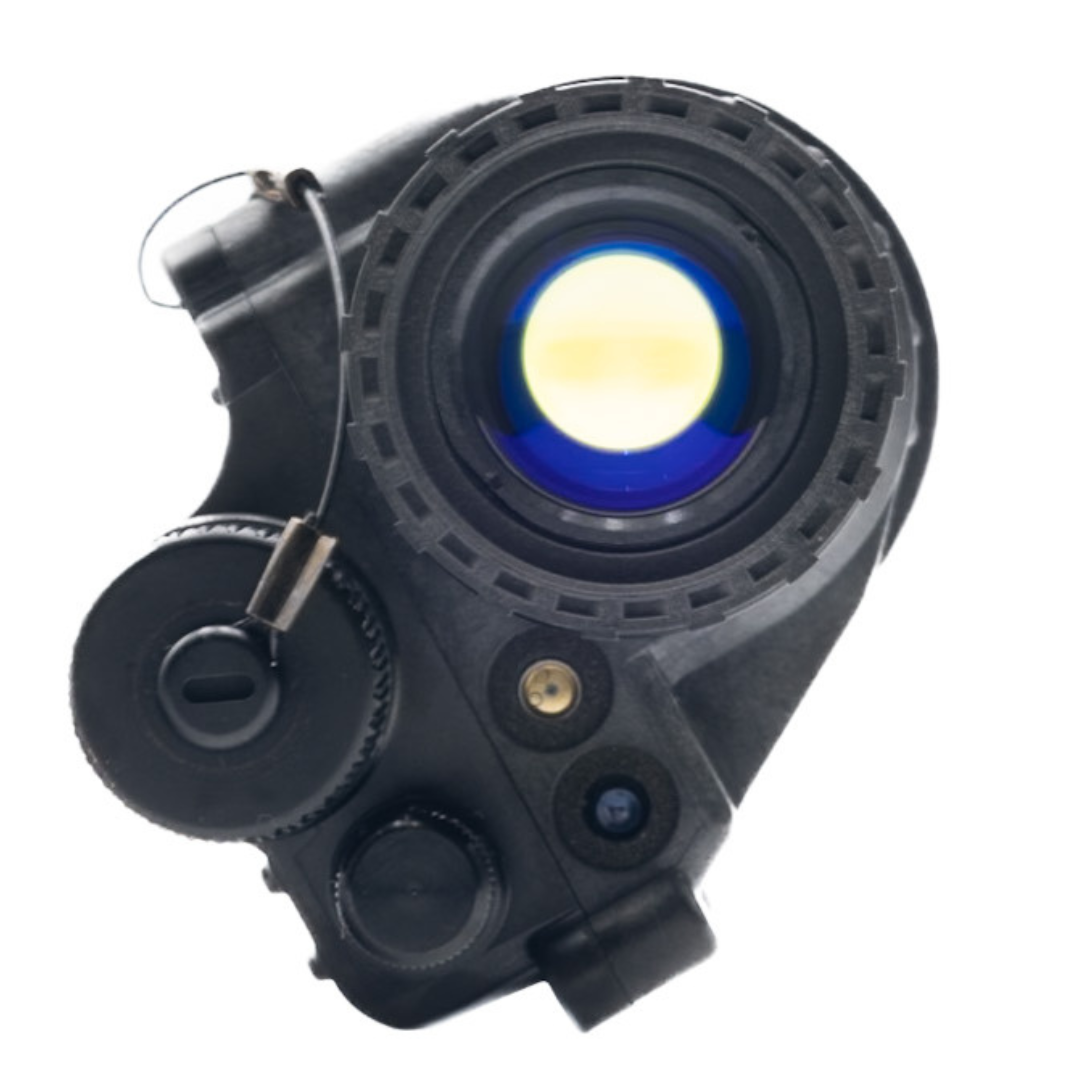

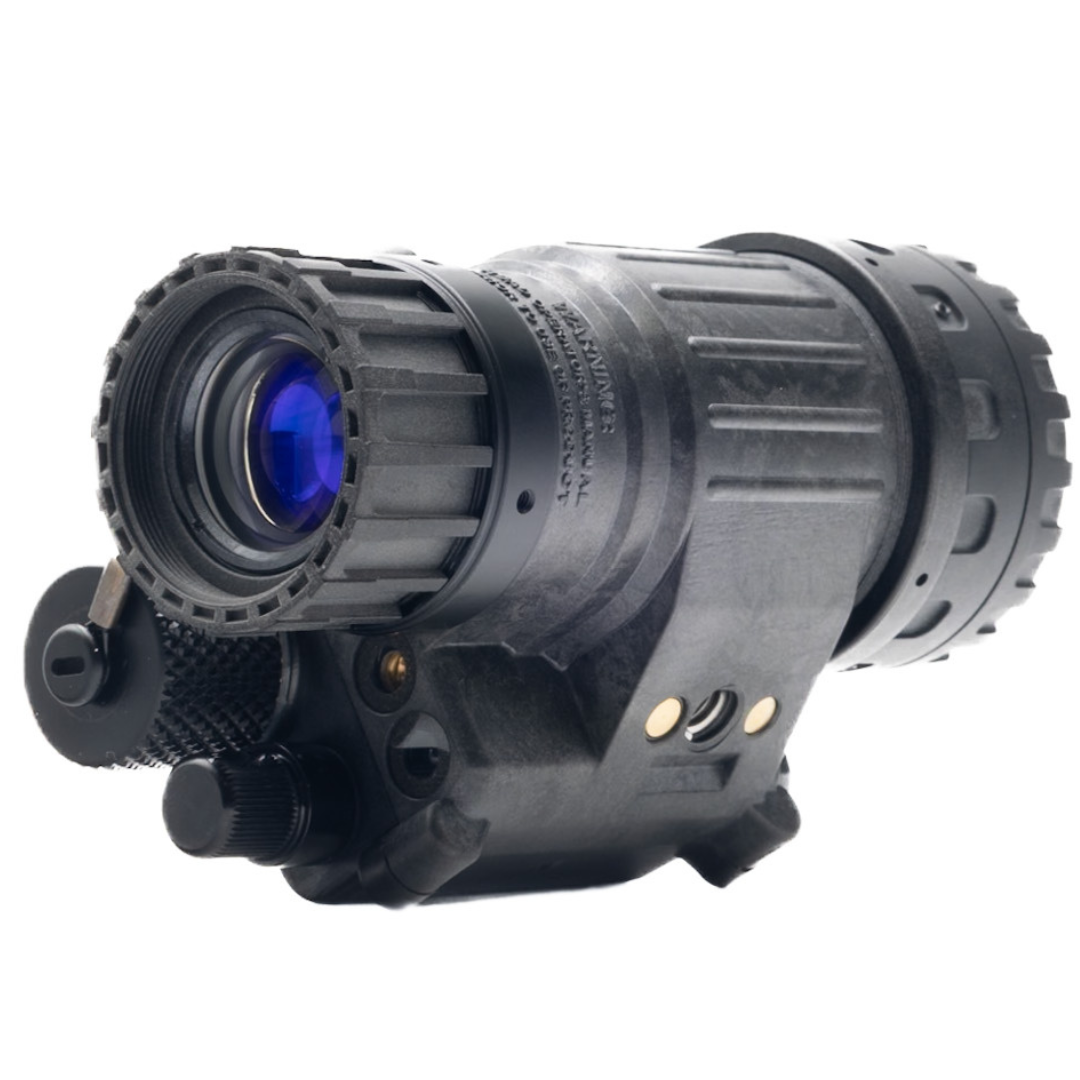

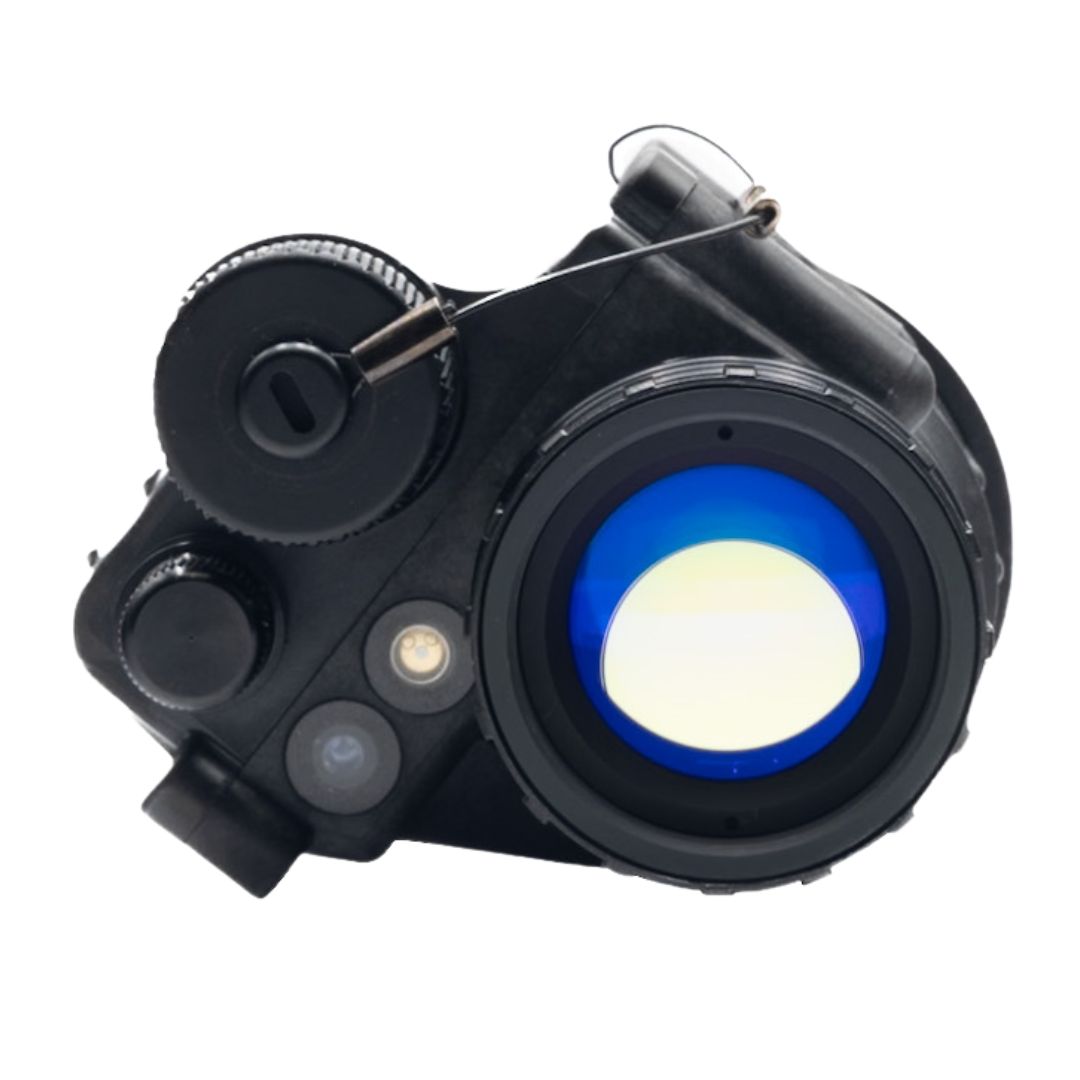

The Noctis Technologies (Carson PVS-14) Night Vision Monocular delivers military-grade performance, accepting an 18mm image intensifier tube, built to the same standards as those supplied to the DLA for MILSPEC systems. Designed for versatility and durability, the lightweight monocular can be used handheld, mounted on a helmet, head strap, or weapon
Features
• Automatic highlight cutoff
• Infrared illuminator
• IR-On indicator
• Low voltage indicator
• Manual Gain
• Dovetail interface to helmet mount and capable of mounting to other mounting interfaces
• Powered by a single, centrally weighted AA battery
What’s Included with your STN night vision device:
-Alpen Design Works x See The Night Limited edition pouch
-STN Day Caps
-NERD from Kinetic Consulting
-STN Sacrificial Lenses
-ITAR Card
-Warranty Card
-Battery
Image Intensifiers
ELBIT XLS/XLSHÂ
Gen 3 18mm image intensifier
Center Res min: 64
SNR min: 21
EBI max: 2.5
HALO max: 1.25
Power Supply: gated or non-gated format.Â
Reliability @ 10,000 hours minimum
Available in P45 (F9400/F9410/F9415) white
phosphor and P43 (F9800/F9810/F9815) green
Commercial Spot Spec
ELBIT SLH
Gen 3 18mm image intensifier
Center Res min: 64
SNR min: 24
EBI max: 2.5
HALO max: 1.25
Power Supply: gated or non-gated format.Â
Reliability @ 10,000 hours minimum
Available in P45 (F9400/F9410/F9415) white
phosphor and P43 (F9800/F9810/F9815) green
Commercial Spot Spec
ELBIT YH
Gen 3 18mm image intensifier
Center Res min: 64
SNR min: 25
EBI max: 2.5
HALO max: 1.0
Power Supply: gated or non-gated format.Â
Reliability @ 10,000 hours minimum
Available in P45 (F9400/F9410/F9415) white
phosphor and P43 (F9800/F9810/F9815) green
Milspec Spot Spec
ELBIT VH
Gen 3 18mm image intensifier
Center Res min: 64
SNR min: 28
EBI max: 2.5
HALO max: .85
Power Supply: gated or non-gated format.Â
Reliability @ 10,000 hours minimum
Available in P45 (F9400/F9410/F9415) white
phosphor and P43 (F9800/F9810/F9815) green
Aviation Spot Spec
L3HARRIS 18UA/UM
Gen 3 18mm image intensifier
Center Res min: 64
FOM min: 1540Â
SNR min: 24
EBI max: 2.5
HALO max: 1.0
Power Supply: autogated
Aviation Spot Spec (UA) or Milspec Spot Spec (UM)
L3HARRIS 24UA/UM
Gen 3 18mm image intensifier
Center Res min: 64
FOM min: 2160
SNR min: 33.7
EBI max: 2.5
HALO max: 1.0
Power Supply: autogated
Aviation Spot Spec (UA) or Milspec Spot Spec (UM)
L3HARRIS FACTORY DEVICES (PVS-31A, BNVD-1531, GPNVG HIGH FOM)Â
Gen 3 18mm image intensifier
Center Res min: 72
FOM min: 2376
SNR min: 33
EBI max: 2.5
HALO max: .85
Power Supply: autogated
Milspec Spot Spec (UM)
