BNVD Fused

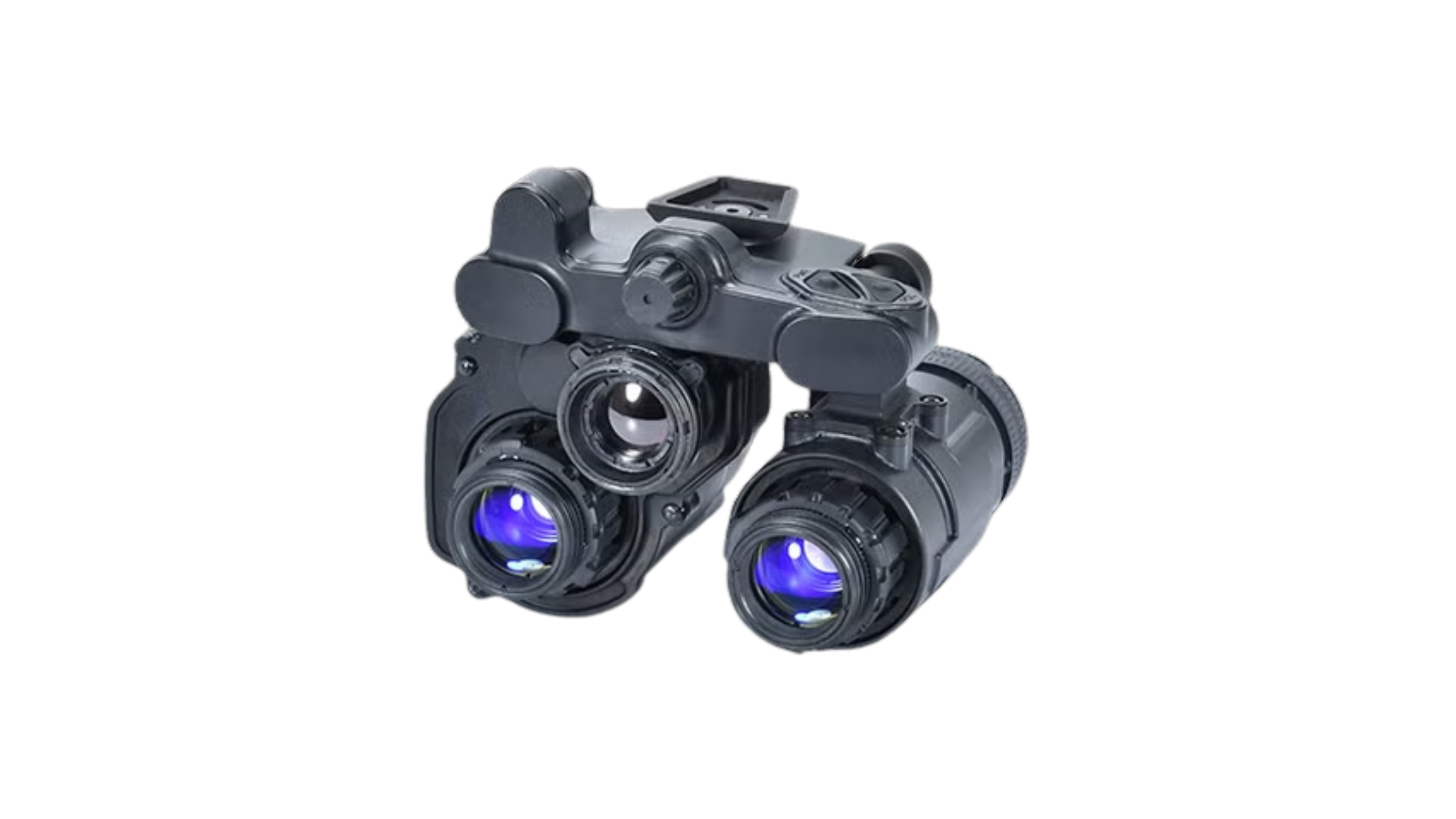

The L3Harris BNVD-Fused is a helmet-mounted, dual-wave goggle that combines Gen III image intensification with a thermal overlay to improve detection and situational awareness in all lighting and environmental conditions. Built on the proven BNVD platform, it features a dual-tube design, articulating pods, and integrated thermal fusion to enhance target identification in darkness, smoke, fog, and cluttered terrain. Compatible with advanced battery and data systems, the BNVD-Fused delivers a reliable, mission-ready solution for professional applications.

Weight: 21.6 oz (Goggle Only), 35 oz w/ Battery Pack
Power Supply: 4x 1.5V L91 AA Lithium (External Battery Pack)
Battery Life: ~8 Hours Fused / Thermal Operation
Operating Modes: I2 Only / FUSED + NAV / I2 + NAV / I2 Standby
Display Resolution: 1280 x 1024 (SXGA)
Thermal Sensor Pixel Pitch: 12 μm
Thermal Palettes: White Hot / Black Hot / Outline
TUBE: U.S. Gen 3, MX-11769 18mm 2376+ FOM Unfilmed White Phosphor (Multiple Performance Ratings Available)
Gain: Manual / Variable Gain Control
